Fuse detailsUnder bonnet fuse box
UNDER BONNET FUSE BOX
2
| FL1 FL2 FL3 FL4 FL5 | |||
| FL6 |
| FL1 |
| FL2 |
| FL3 |
| FL4 |
| FL5 |
1
| FL6 |
| M86 5062 |

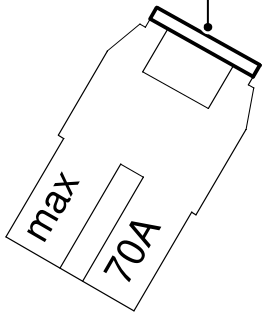

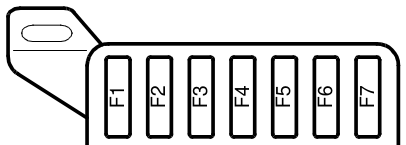

1. Under bonnet fuse box 2. EPAS in-line fuse Fusible links
| Link FL1 | Rating, Amperes 40 | Function Lighting |
| FL2 | 60 | ABS modulator |
| FL3 | 30 | Heated rear window/ engine bay cooling fan |
| FL4 | 40 | Ignition switch A |
| FL5 | 40 | Ignition switch B |
| FL6 | 60 | Battery |
