Transmission communication
The Em-CVT is based on a standard CVT unit with electronic components fitted to control the gear ratios. The location of the components that form the Em-CVT steptronic transmission vary depending upon vehicle installation.

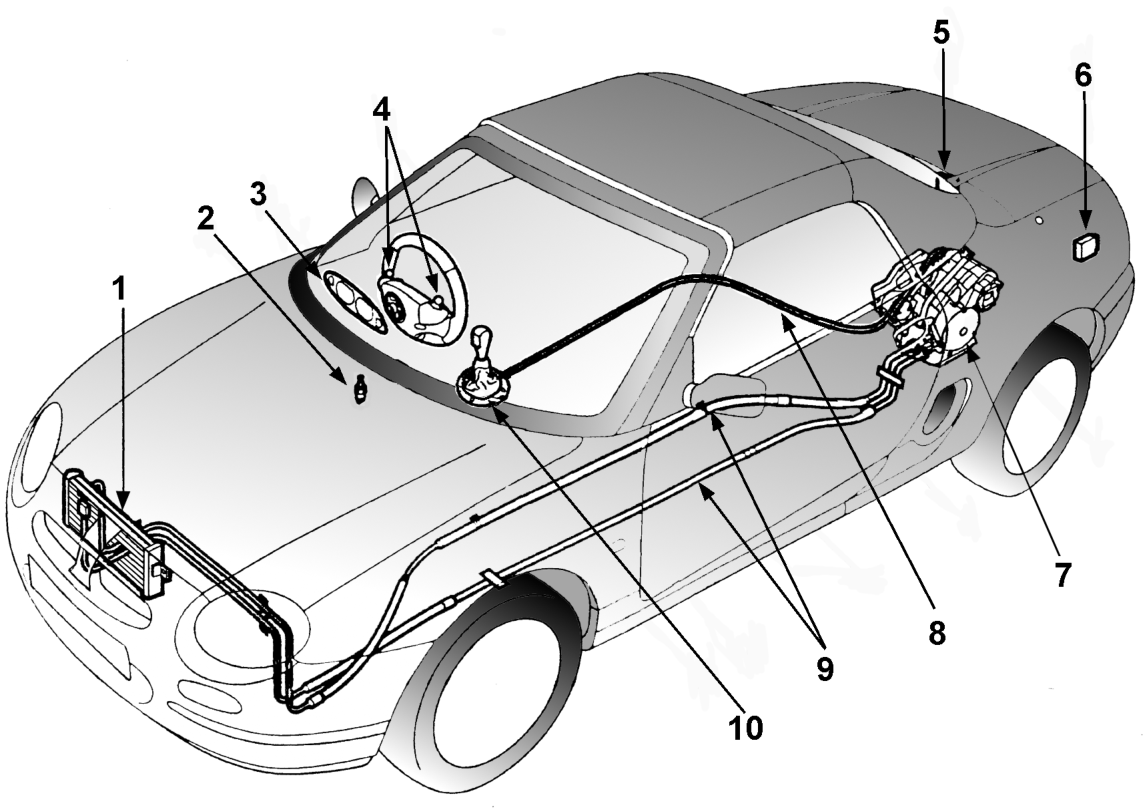

MGF Electro mechanical-continuously variable transmission components
Figure 23
1.Oil cooler 2.Brake switch 3.Instrument pack 4.Steering wheel switches 5.ECM 6.Gearbox interface unit (GIU) 7.Em-CVT Steptronic transmission 8.Selector cable 9.Oil cooler feed/return pipes 10.Gear selector lever
