Cooling system components

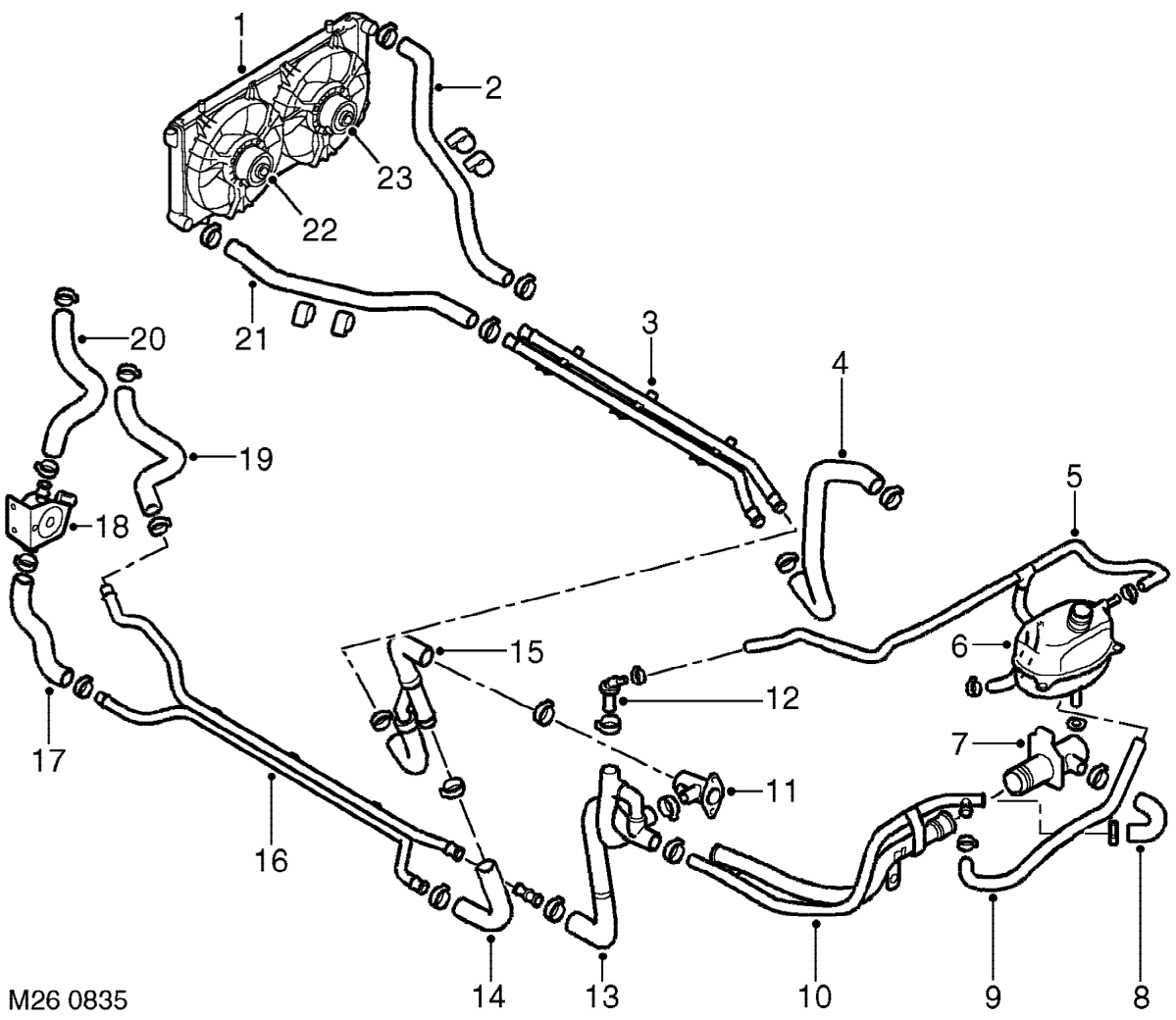

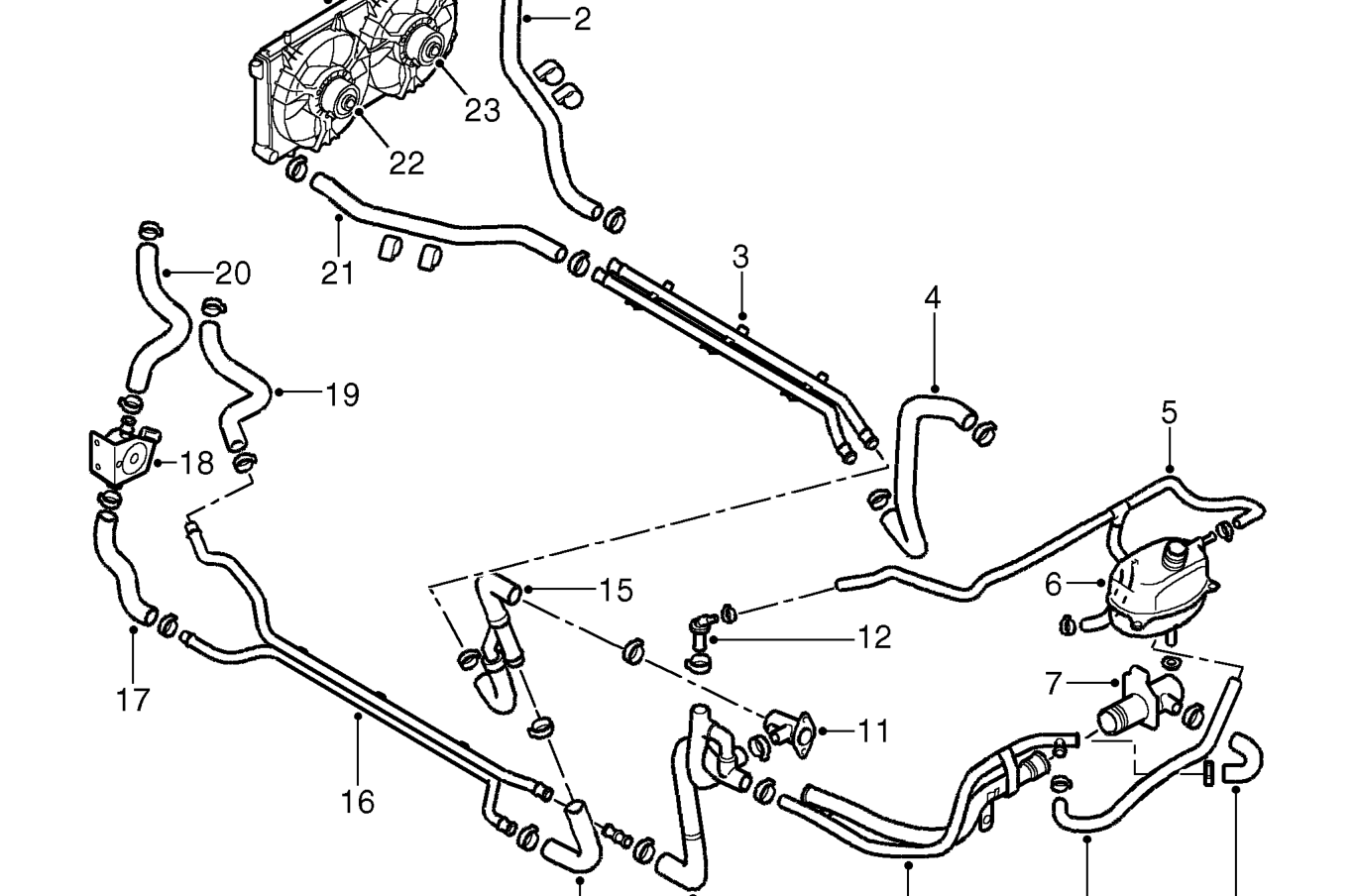

COOLING SYSTEM COMPONENTS

1. Radiator
2. Hose - radiator top
3. Pipe assembly - underfloor
4. Hose - engine inlet
5. Hose - bleed line
6. Expansion tank
7. Adaptor
8. Hose - engine rail to thermostat housing
9. Hose - expansion tank to engine rail
10. Pipe assembly - engine rail/engine inlet
11. Adaptor
12. Jiggle valve
13. Hose assembly - bypass/heater return
14. Hose - engine outlet hose to heater feed pipe
15. Hose - engine outlet
16. Pipe assembly - heater feed and return
17. Hose - heater feed pipe to control valve
18. Control valve
19. Hose - heater matrix to heater return pipe
20. Hose - control valve to heater matrix
21. Hose - radiator bottom
22. Fan - radiator cooling
23. Fan - air conditioning vehicles only
