Engine management system - MEMSThrottle cable

THROTTLE CABLE

Service repair no - 19.20.05

NOTE: Before adjustment, ensure the cable is correctly routed and located. Do not attempt to adjust the throttle cable or engine idle speed by means of the throttle stop screw.

Adjust

  1. Remove the engine compartment access panel. See BODY, Exterior fittings.

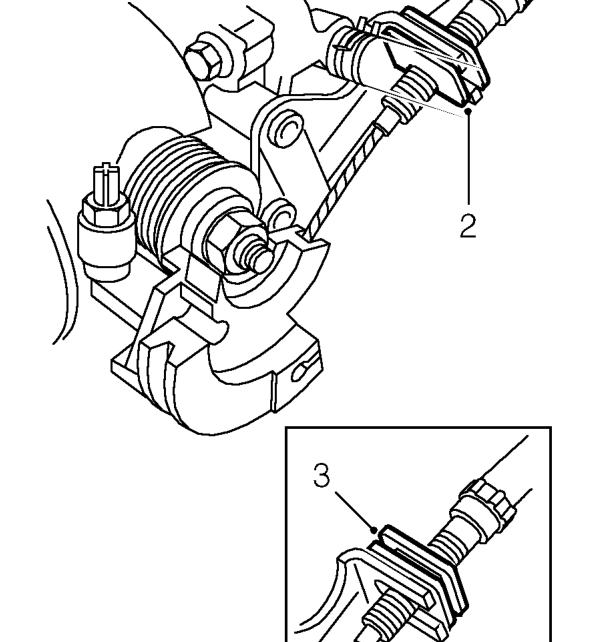

Throttle cable – Remove the engine compartment access panel. See BODY, Exterior fittings.
  1. Release cable adjusting nut from abutment bracket.
  2. Position outer cable to abutment bracket so that adjusting nut is in contact with top of abutment bracket.

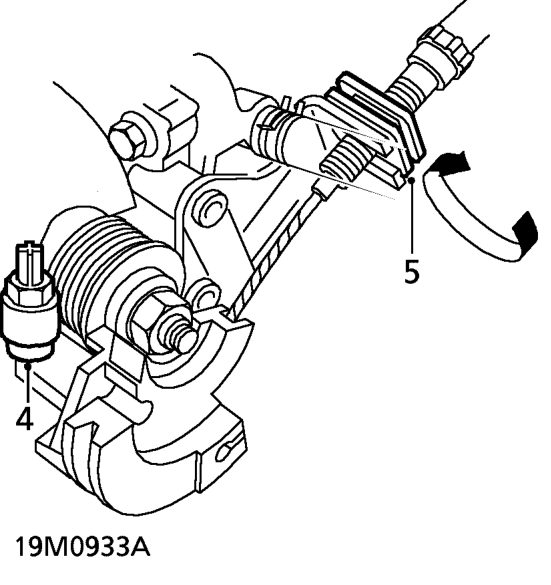

Throttle cable – Position outer cable to abutment bracket so that adjusting nut is in contact with top of a
  1. Hold throttle cam in fully closed position, ensure throttle cam contacts throttle stop screw.
  2. Rotate cable adjusting nut until all slack is taken out of inner cable. Ensure throttle does not open.
  3. Locate throttle cable adjusting nut in abutment bracket.
  4. Operate throttle pedal and ensure that full throttle pedal movement is available.
  5. Fit engine compartment access panel. See BODY, Exterior fittings.
