JACKING, SUPPORTING AND TOWING

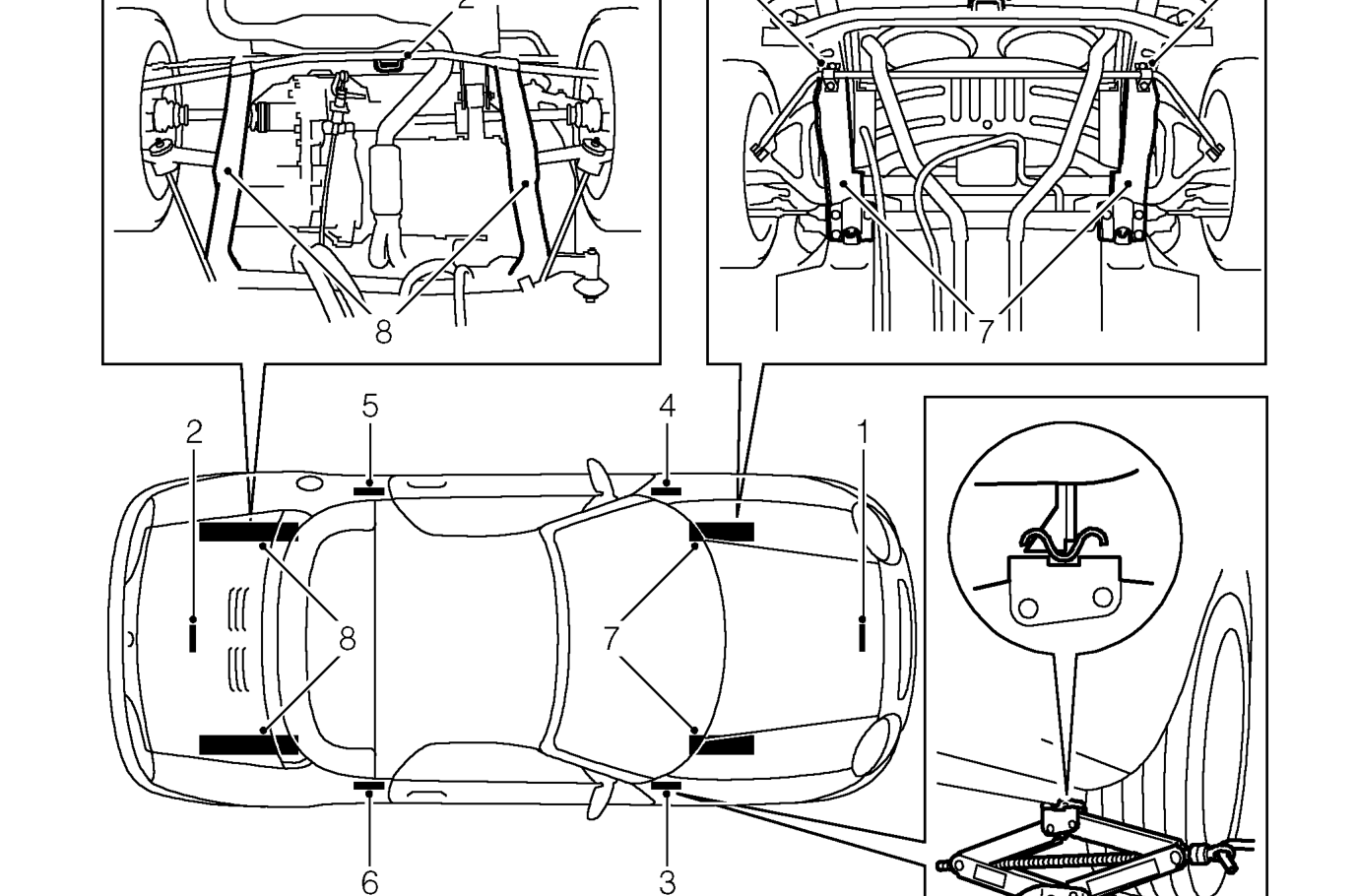

Jacking, supporting and towing
  1. Central jacking point - front
  2. Central jacking point - rear
  3. RH sill reinforced bracket - front
  4. LH sill reinforced bracket - front
  5. LH sill reinforced bracket - rear

WARNING: In accordance with normal workshop practice, and to avoid the possibility of damage or personal injury, work must not be carried out, on or under a vehicle when it is supported solely on a jack. Place safety supports under the sill reinforced jacking areas (3, 4, 5 or 6).

  1. RH sill reinforced bracket - rear
  2. Subframe longitudinal members - front
  3. Subframe longitudinal members - rear
  4. Front towing eyes

WARNING: Do not position a jack, jack stand or wheel free support under the suspension attachment points.

WARNING: Do not attempt to jack under suspension attachment points.
