Restraint systems (Component location): Description and operation

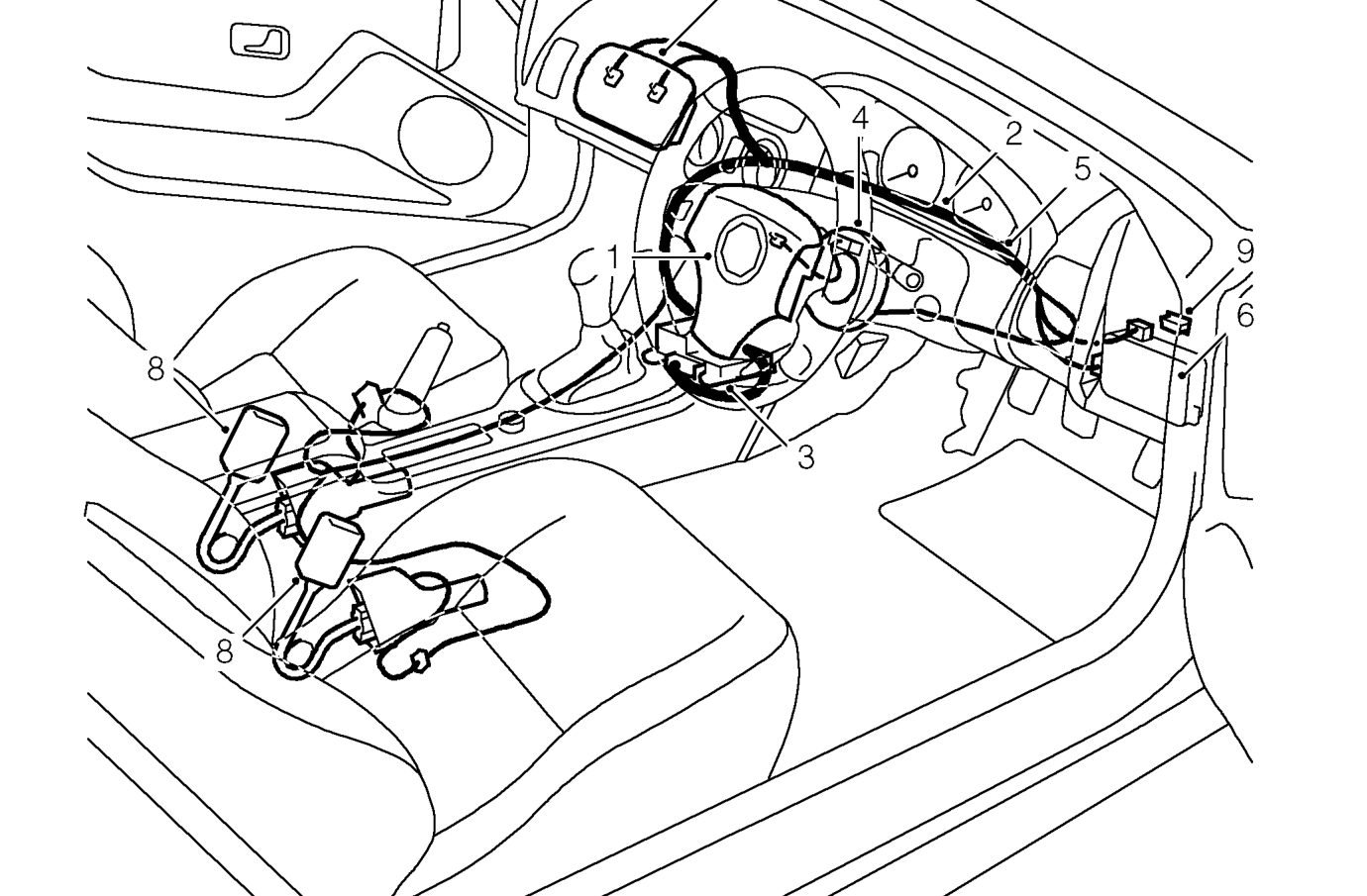

COMPONENT LOCATION

NOTE: LHD type is symmetrical to RHD type.

1. Driver’s airbag module *
2. SRS warning light
3. Diagnostic control unit *
4. Rotary coupler *
5. SRS harness (YELLOW) *

* Components to be renewed following system deployment.

Following deployment of the Supplementary Restraint System (SRS), under any circumstances, the above components marked with an asterisk must be renewed.

6. Fuse/relay box
7. Passenger’s airbag module (optional) *
8. Seat belt pre-tensioners *
9. Diagnostic socket

Impacts which do not deploy airbags, check for structural damage in the area of impact, paying particular attention to bumper armatures, longitudinals, crash cans and bracketry.
