Clutch master cylinder

CLUTCH MASTER CYLINDER

Service repair no - 33.20.01

Remove

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

1. Remove underbonnet closing panel, See BODY, Exterior fittings.

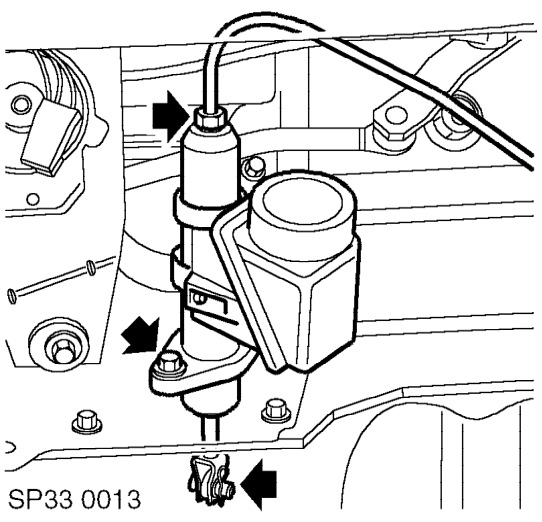

2. Remove clevis pin from clutch pedal.
3. Position cloth to catch spillage.
4. Loosen and release union securing fluid pipe to master cylinder, position fluid pipe aside.

CAUTION: Always fit plugs to open connections to prevent contamination.

5. Remove 2 bolts securing master cylinder to pedal box.
6. Remove master cylinder.
7. Remove and discard gasket.

Refit

1. Using new gasket, fit master cylinder and tighten bolts to 25 Nm.
2. Position pipe and tighten union to 18 Nm.
3. Position clutch pedal to push rod, fit clevis pin.
4. Fit washer and clip.
5. Bleed clutch. See Adjustments.
6. Fit underbonnet closing panel. See BODY, Exterior fittings.
