Alternator drive belt - with air conditioning - adjust (Electrical)

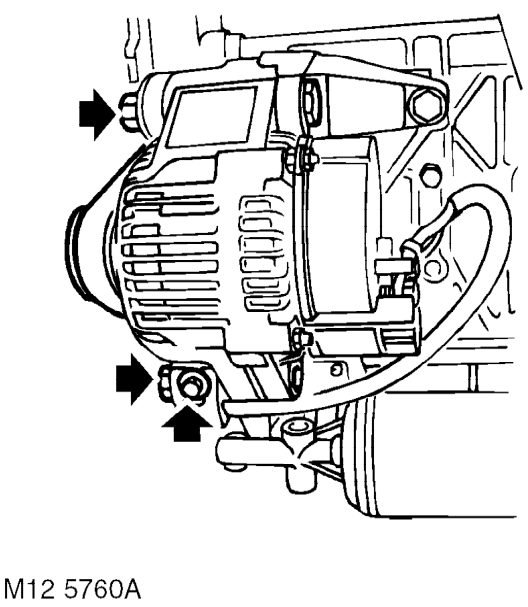

2. Loosen 2 alternator clamp bolts.

CAUTION: Ensure that bolts are loosened sufficiently for alternator to move freely.

3. Turn adjustment bolt in a clockwise direction to increase belt tension.

CAUTION: Do not apply excessive torque to adjusting bolt or damage to bolt will result. If bolt appears to be seized or is difficult to turn, apply suitable anti-seize lubricant to bolt.

4. Check belt tension and re-adjust if necessary.
5. Tighten clamp bolts to 45 Nm.
6. Tighten adjustment bracket bolt to 25 Nm.
7. Position closing panel to body and secure with scrivets and Torx screw.
8. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
9. Remove stand(s) and lower vehicle.
10. Connect battery earth lead.

ALTERNATOR DRIVE BELT - WITH AIR CONDITIONING - ADJUST

Service repair no - 86.10.05/20

Check

1. Disconnect battery earth lead.
2. Raise rear of vehicle.

WARNING: Support on safety stands.

3. Remove road wheel(s).

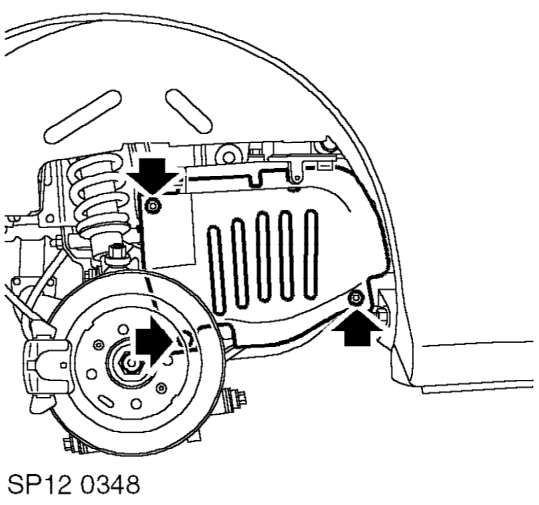

4. Remove 2 scrivets and Torx screw securing closing panel.
5. Remove closing panel.
6. Check condition of drive belt. Renew a drive belt that shows signs of wear and splitting.
