General informationPaint and Trim colour codes

Paint and Trim colour codes

3-letter codes identifying the original Paint and Trim colours are stamped on the VIN plate

Paint

K M N

K = Basic colour

M = Mark identifier

N = Colour/Shade name

Trim

L Q P

L = Basic colour

Q = Mark identifier

P = Colour/Shade name

IDENTIFICATION NUMBER LOCATIONS

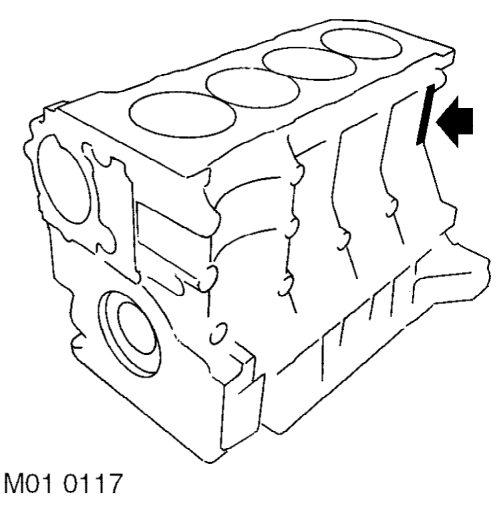

Engine number

Engine number – P = Colour/Shade name

’K’ Series Engine: Stamped on the front face of the cylinder block adjacent to the gearbox.

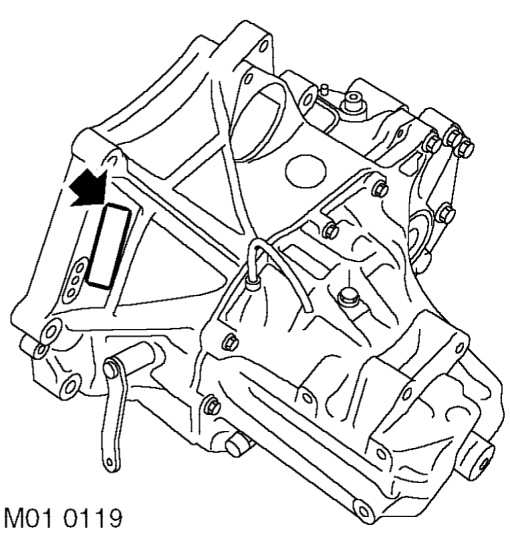

Gearbox number

Gearbox number – ’K’ Series Engine: Stamped on the front face of the cylinder block adjacent to the gearbox

Manual Gearbox: Stamped on a label attached to the front face of the clutch housing.
