Gearbox fluid - manual models

GEARBOX FLUID - MANUAL MODELS

Fluid level check and top-up

1. Ensure vehicle is standing on level surface.

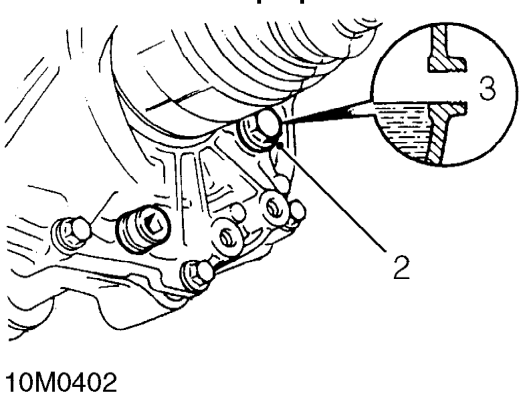

2. Wipe clean area around filler/level plug and remove plug and sealing washer. Discard sealing washer.
3. Check that fluid is level with bottom of level plug hole.

CAUTION: Fluid lodged behind level plug will trickle out when plug is removed and can give impression that level is correct.

4. Top-up, if required, until fluid just runs from hole. Allow sufficient time for fluid to flow and reach a common level within gearbox. Use Texaco MTF 94 transmission oil. See INFORMATION, Capacities, fluids and lubricants.
5. Refit filler/level plug and new sealing washer and tighten to 35 Nm.

GEARBOX FLUID - STEPSPEED (Em-CVT) MODELS

Fluid level check and top-up

NOTE: Always check fluid level with vehicle standing on level ground and gearbox at operating temperature.

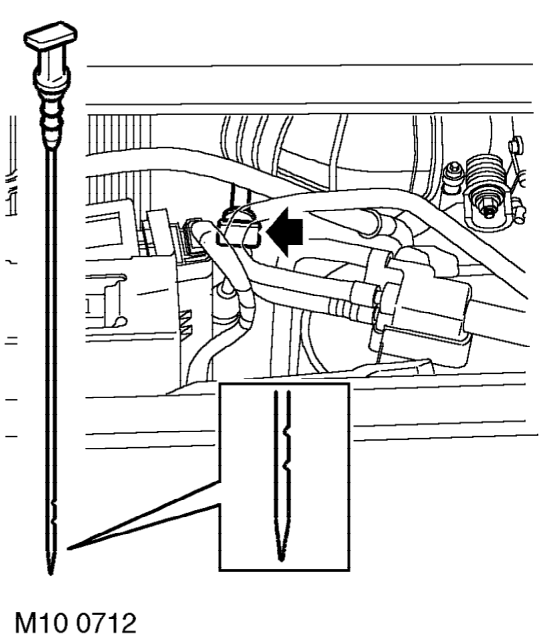

1. With engine running at idle speed and handbrake applied, select ’P’ or ’N’. Withdraw dipstick and wipe blade with clean lint free cloth.
2. Re-insert dipstick fully, withdraw and check fluid level which must be maintained between minimum and maximum marks on dipstick.
3. Switch off engine and top-up to maximum mark if required. See AUTOMATIC GEARBOX - ’Em-CVT’, Adjustments.
4. Refit dipstick.
