MG TF Factory Workshop Manual (2002-2005)13 · Steering
13 · Steering & suspension

Steering column (page 2 of 3)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
SteeringSteering column · page 2 of 3
Diagram

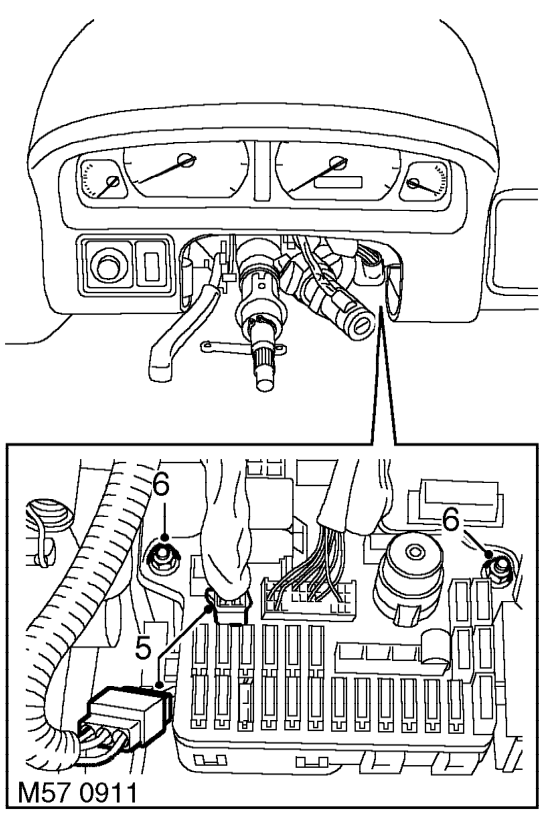

  1. Disconnect ignition switch multiplugs from fusebox and main harness.

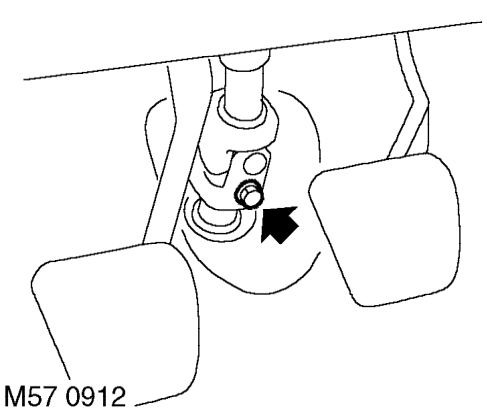

  2. Remove 2 nuts securing passenger compartment fusebox to body and position aside.
Remove 2 nuts securing passenger compartment fusebox to body and position aside.

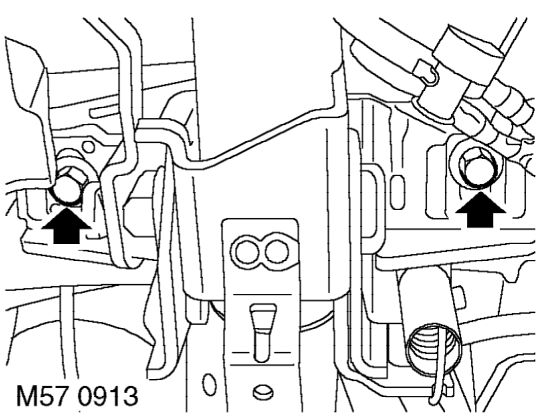

  1. Remove bolt securing universal joint to steering rack pinion.

CAUTION: The steering column upper mounting bolts must be removed before the lower mounting bolts. This is to prevent the weight of the steering column damaging the upper mounting breakout capsules.

Remove bolt securing universal joint to steering rack pinion.

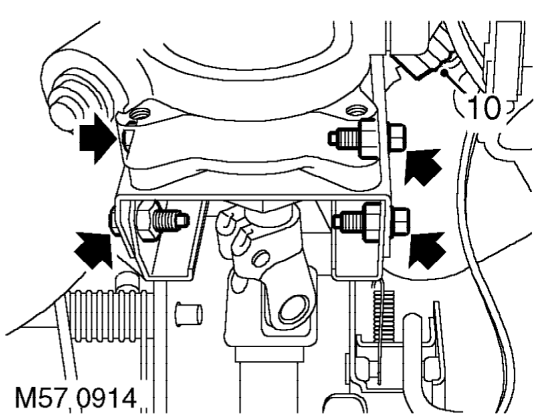

  1. Remove 2 bolts securing upper steering column to fascia rail.
Remove 2 bolts securing upper steering column to fascia rail.
  1. Remove 4 bolts securing lower steering column to bracket.
  2. Lower steering column and disconnect 2 multiplugs.

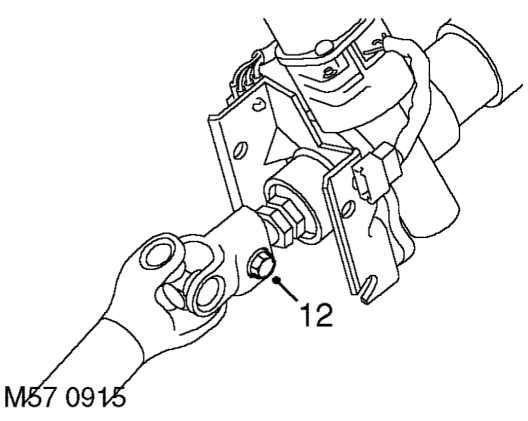

  3. Release column assembly from steering rack pinion and remove from vehicle.
Release column assembly from steering rack pinion and remove from vehicle.
  1. Remove clamping bolt securing steering column to universal joint and remove joint.
  2. Position steering column assembly in vice.
