WIPER MOTOR

Service repair no - 84.15.12

Remove

  1. Remove wiper motor and linkage assembly. See this section.

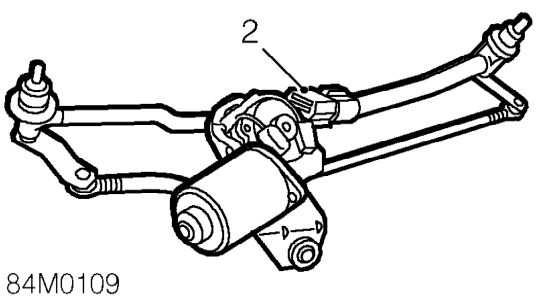

Wiper motor – Remove wiper motor and linkage assembly. See this section.
  1. Release multiplug clip from linkage.

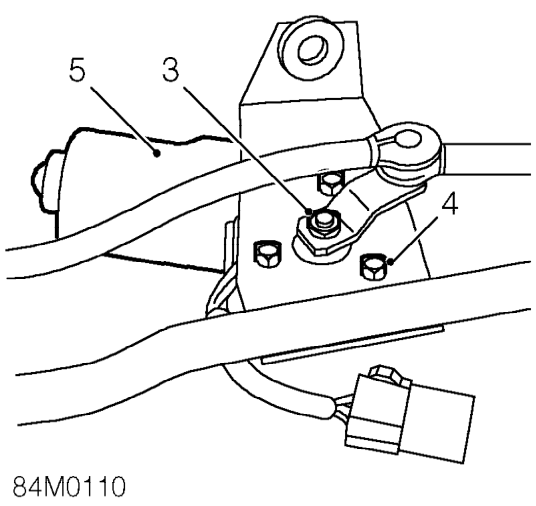

Wiper motor – Release multiplug clip from linkage.
  1. Remove nut securing crank to motor spindle and release crank.
  2. Remove 3 bolts securing motor.
  3. Remove motor.

Refit

  1. Connect multiplug to harness.
  2. Operate wipers to park motor.
  3. Disconnect multiplug.
  4. Fit motor to linkage bracket and tighten bolts to 12 Nm.

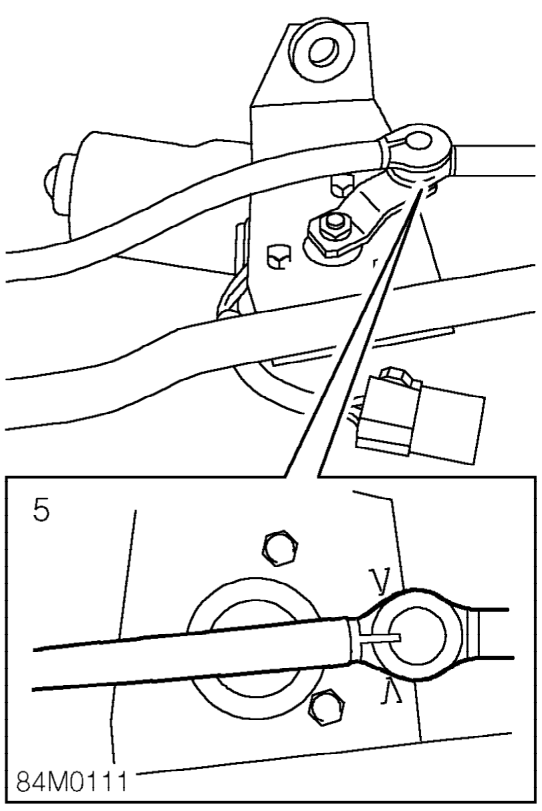

Wiper motor – Fit motor to linkage bracket and tighten bolts to 12 Nm.
  1. Align crank between timing marks and fit to motor spindle.
  2. Fit and tighten crank nut to 18 Nm.
  3. Engage multiplug.
  4. Fit wiper motor and linkage. See this section.
