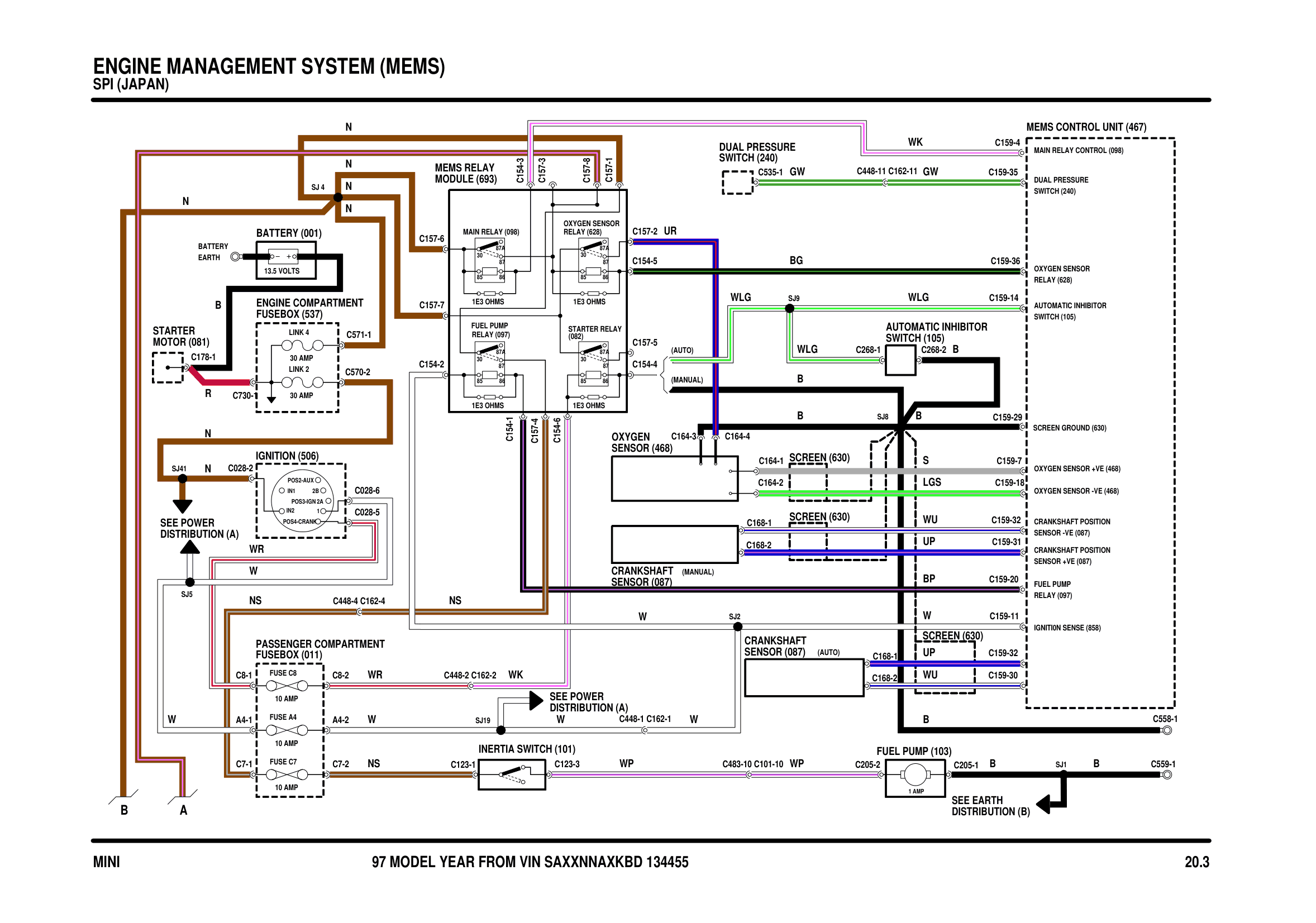

ENGINE MANAGEMENT SYSTEM (MEMS)
Components on this diagram
- AUTOMATIC INHIBITOR SWITCH (105)
- BATTERY (001)
- CRANKSHAFT POSITION SENSOR +VE (087)
- CRANKSHAFT POSITION SENSOR -VE (087)
- CRANKSHAFT SENSOR (087)
- DUAL PRESSURE SWITCH (240)
- ENGINE COMPARTMENT FUSEBOX (537)
- FUEL PUMP (103)
- FUEL PUMP RELAY (097)
- IGNITI0N SENSE (858)
- IGNITION (506)
- INERTIA SWITCH (101)
- MAIN RELAY (098)
- MAIN RELAY CONTROL (098)
- MEMS CONTROL UNIT (467)
- MEMS RELAY MODULE (693)
- OXYGEN SENSOR (468)
- OXYGEN SENSOR +VE (468)
- OXYGEN SENSOR -VE (468)
- OXYGEN SENSOR RELAY (628)
- PASSENGER COMPARTMENT FUSEBOX (011)
- SCREEN (630)
- SCREEN GROUND (630)
- STARTER MOTOR (081)
