C177
- Make
- Mini
- Model
- Mini Electrical Library
- Year
- 2001
- Section
- C177 › C177
ConnectorsC177

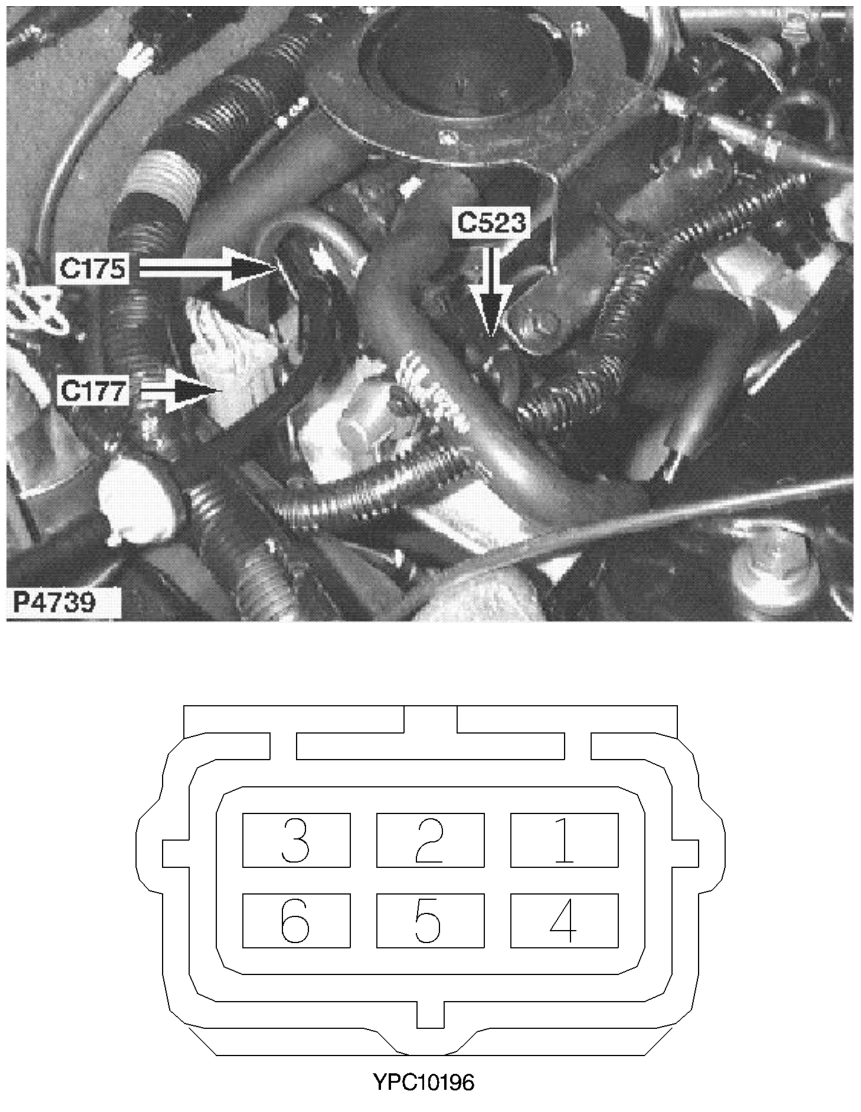

Stepper motor Female BLUE Top rear of engine - centre
Stepper-motor Vrouwelijk BLAUW boven/achterkant motor - midden
| Cav | Col | Cct |
|---|---|---|
| 1 | OS | ALL |
| 2 | NK | ALL |
| 3 | KU | ALL |
| 4 | OU | ALL |
| 6 | OG | ALL |
Motor paso a paso Hembra AZUL parte superior trasera del motor - centro
