Combinatie-instrument Vrouwelijk
- Make
- Mini
- Model
- Mini Electrical Library
- Year
- 2001
- Section
- C230 › Combinatie-instrument Vrouwelijk
ConnectorsCombinatie-instrument Vrouwelijk

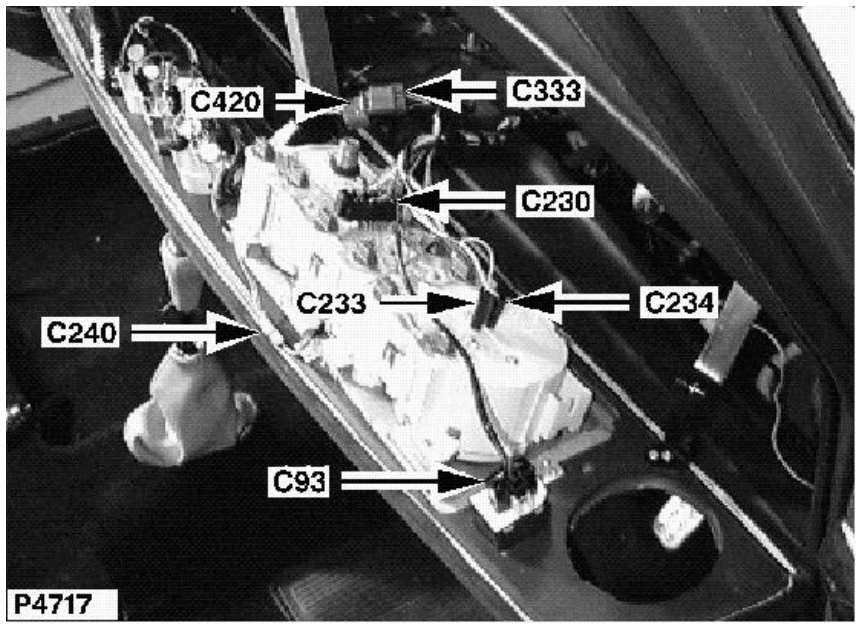

Instrument pack Female BLACK Behind RH side of fascia
Combinatie-instrument Vrouwelijk
ZWART Achter rechterkant dashboard
| Cav | Col | Cct | Cav | Col | Cct |
|---|---|---|---|---|---|
| 1 | GW | ALL | 7 | P | ALL |
| 2 | GB | ALL | 8 | W | ALL |
| 3 | GU | ALL | 10 | NY | ALL |
| 4 | UW | ALL | 11 | WN | ALL |
| 5 | B | ALL | 12 | RW | ALL |
| 6 | GR | ALL |
Grupo de instrumentos Hembra NEGRO Detrás del lado derecho del tablero
