C28
- Make
- Mini
- Model
- Mini Electrical Library
- Year
- 2001
- Section
- C28 › C28

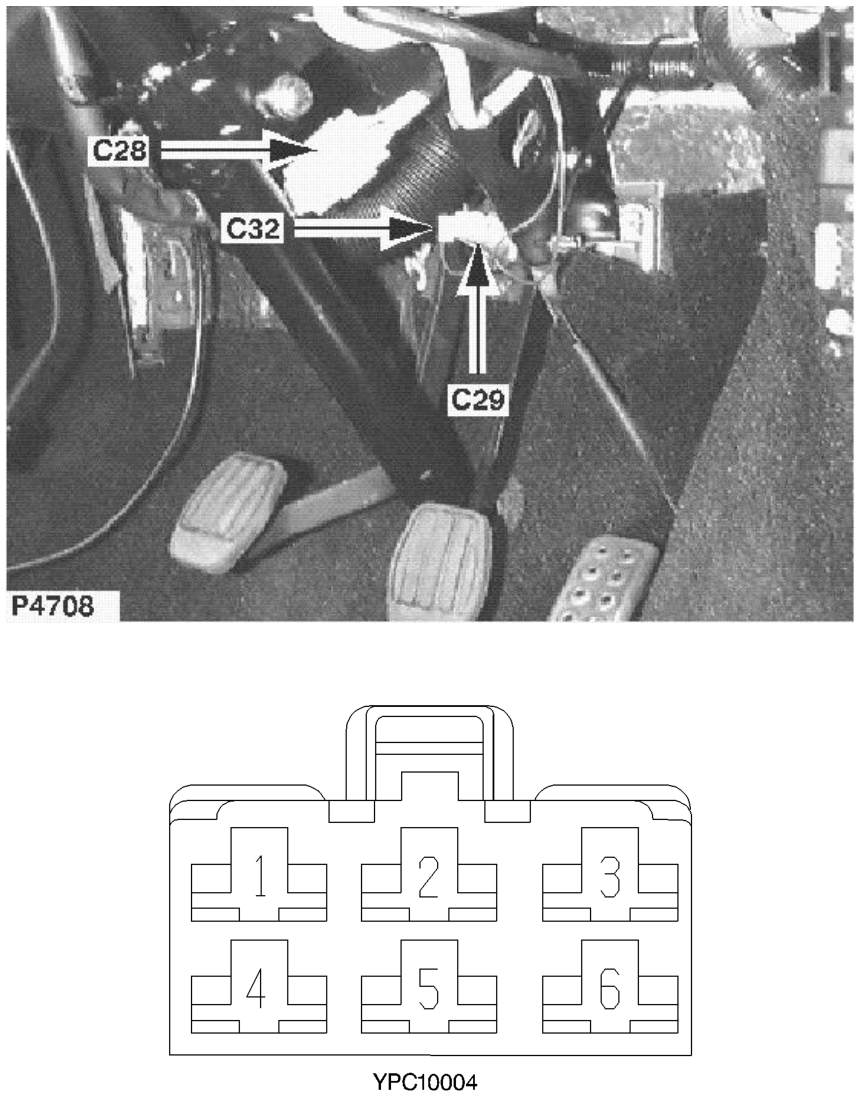

ConnectorsC28
Ignition Female NATURAL Left of steering column
Ontsteking Vrouwelijk NATUREL links van stuurkolom
| Cav | Col | Cct |
|---|---|---|
| 1 | N | ALL |
| 2 | N | ALL |
| 3 | LG | ALL |
| 4 | Y | ALL |
| 5 | WR | ALL |
| 6 | W | ALL |
Encendido Hembra NATURAL lado izquierdo de la columna de dirección
