C534
- Make
- Mini
- Model
- Mini Electrical Library
- Year
- 2001
- Section
- C534 › C534
ConnectorsC534

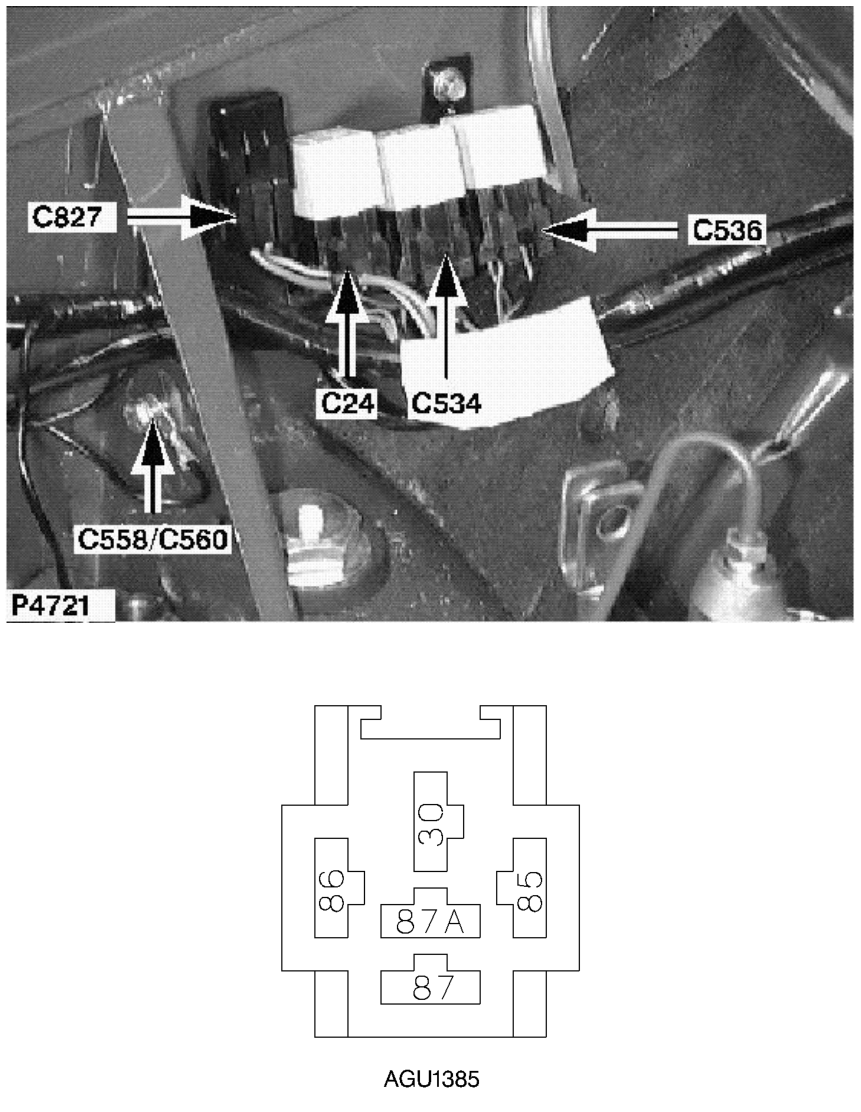

Driving lamp relay Female BLACK Rear RH side of engine compartment
Rijlampen - relais Vrouwelijk ZWART Rechter achterkant motorcompartiment
| Cav | Col | Cct |
|---|---|---|
| 30 | UY | ALL |
| 85 | UW | ALL |
| 86 | B | ALL |
| 87 | P | ALL |
Relé de faros supletorios Hembra NEGRO Parte trasera derecha del compartimento motor
