C547
- Make
- Mini
- Model
- Mini Electrical Library
- Year
- 2001
- Section
- C547 › C547
ConnectorsC547

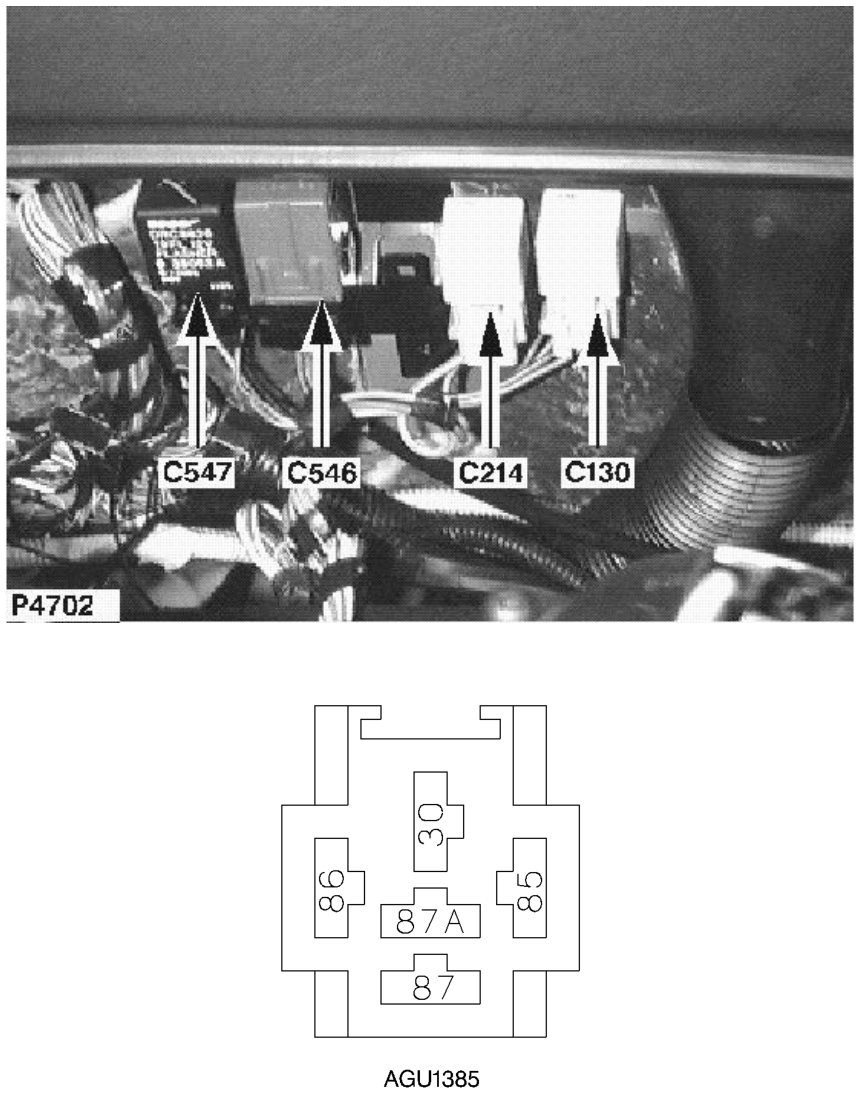

Direction indicator/hazard warning unit Female BLACK Behind centre of fascia
Richtingaanwijzers/alarmknip perlichten Vrouwelijk ZWART achter middelste gedeelte dashboard
| Cav | Col | Cct |
|---|---|---|
| 85 | PO | ALL |
| 86 | B | ALL |
| 87 | LGK | ALL |
Central de intermitentes de dirección/emergencia Hembra NEGRO detrás de la parte central del tablero
