REAR SEAT SQUAB

Service repair no - 78.10.56.99

Remove

  1. Remove rear seat cushion. See this section.
  2. Open luggage compartment.

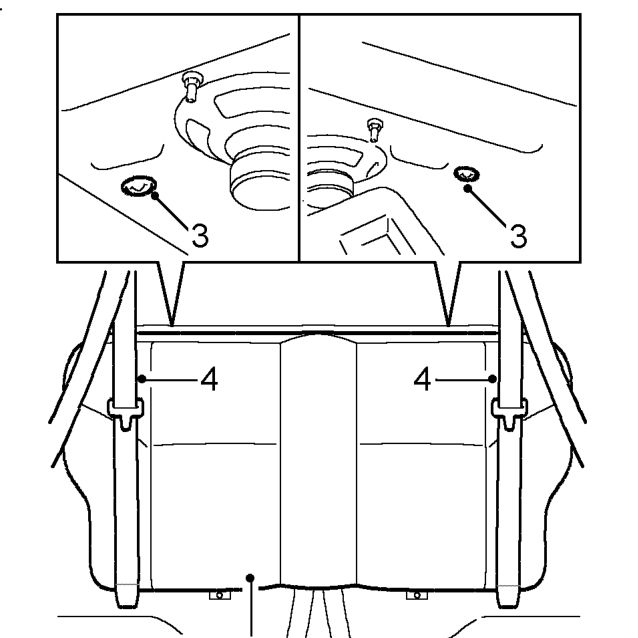

Rear seat squab – Open luggage compartment.
  1. Remove 2 screws securing seat squab to body.
  2. Pull seat belt harnesses away from squab.
  3. Release and remove rear seat squab.

Refit

  1. Position rear seat squab in vehicle.
  2. Ensure seat belts are routed over squab.
  3. Fit and tighten screws securing squab to body.
  4. Fit rear seat cushion. See this section.

REAR SEAT CUSHION

Service repair no - 78.40.29

Remove

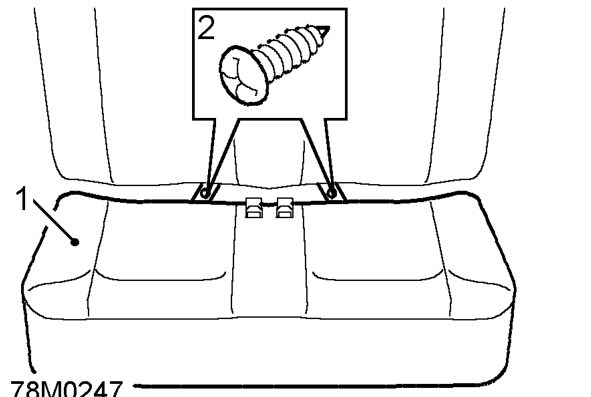

Rear seat cushion – Service repair no - 78.40.29
  1. Release rear seat cushion from seat panel.
  2. Remove 2 screws securing cushion straps to body.
  3. Remove rear seat cushion.

Refit

  1. Position rear seat cushion in vehicle.
  2. Align cushion straps to body and secure with screws.
  3. Position seat cushion on seat panel.
