Rear seat belt

REAR SEAT BELT

Service repair no - 76.73.23

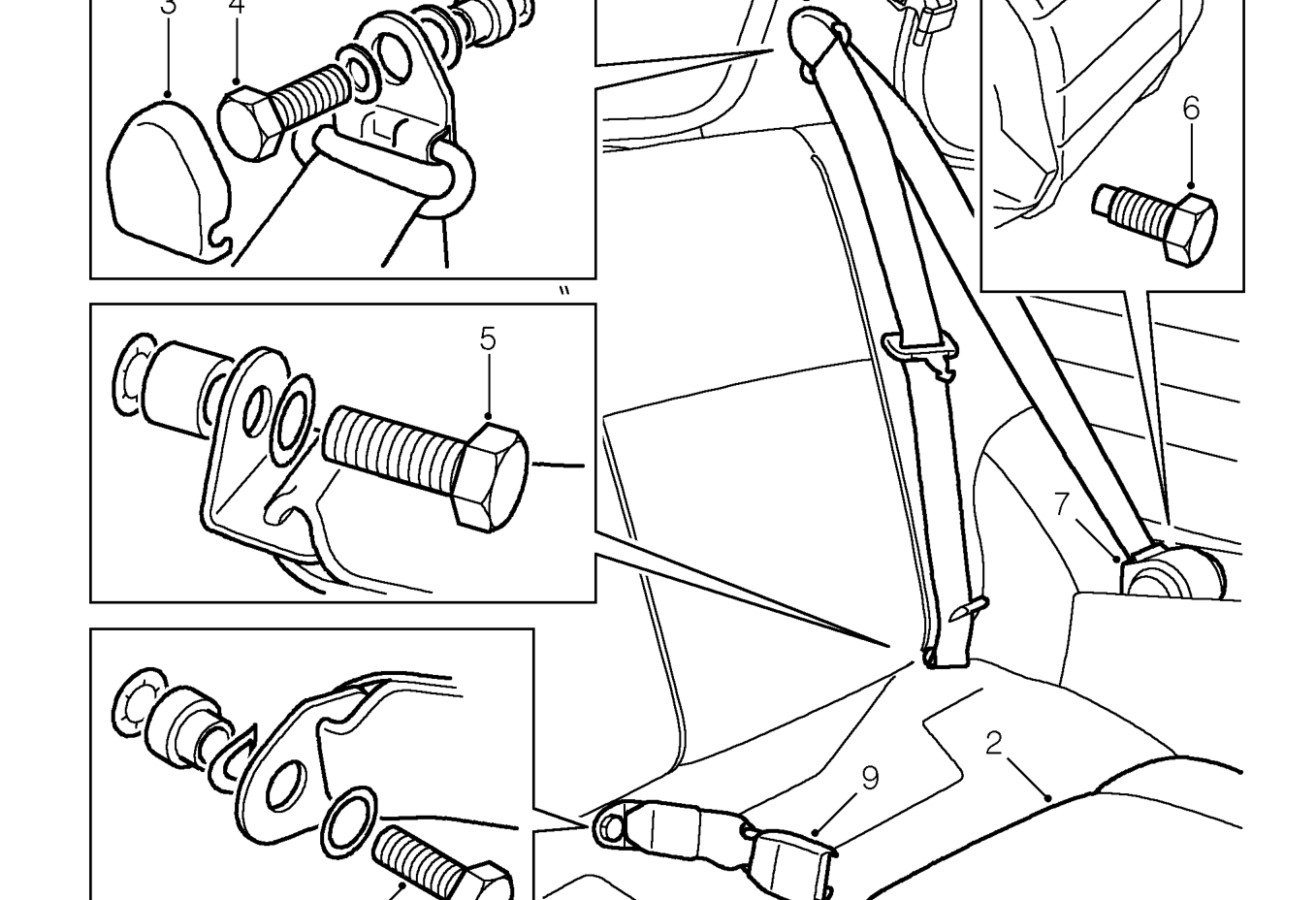

Remove

1. Remove rear quarter companion box. See Interior trim components.
2. Release rear seat cushion from seat panel.
3. Remove cover from seat belt upper anchorage bolt.
4. Remove bolt securing seat belt upper anchorage point to body, collect spacer and washers.
5. Remove bolt securing seat belt lower anchorage point to body, collect spacer and washers.
6. Remove bolt securing seat belt reel to body.
7. Remove rear seat belt reel.
8. Remove bolt and collect washer securing rear seat belt buckle to body.
9. Remove rear seat belt buckle.

Refit

1. Position rear seat buckle to body, fit bolt and washer and tighten to 30 Nm.
2. Position seat belt reel to body, fit bolt and tighten to 30 Nm.
3. Align seat belt lower anchorage point to body, position spacer and washers, fit bolt and tighten to 30 Nm.
4. Align seat belt upper anchorage point to body, position spacer and washers, fit bolt and tighten to 30 Nm.
5. Fit cover to seat belt upper anchorage point.
6. Position rear seat cushion.
7. Fit rear quarter companion box. See Interior trim components.
