Mini Mini Workshop Manual (1996-2000)17 · Body
17 · Body & interior

Rear quarter wooden finisher

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Interior trim components › Rear quarter wooden finisher
BodyRear quarter wooden finisher

REAR QUARTER WOODEN FINISHER

Service repair no - 76.13.71

Remove

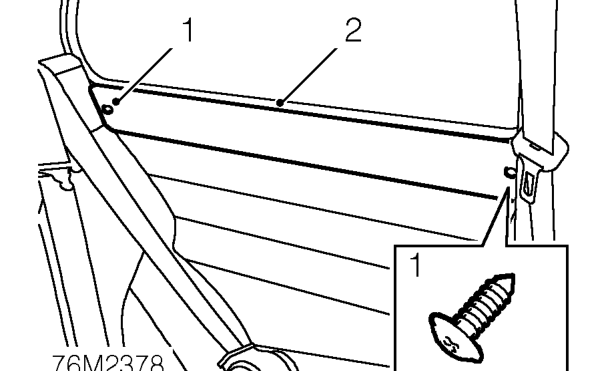

Rear quarter wooden finisher – Service repair no - 76.13.71
  1. Remove 2 screws securing rear quarter wooden finisher to body.
  2. Remove rear quarter finisher.

Refit

  1. Position rear quarter finisher and secure with screws.

REAR QUARTER TRIM PAD

Service repair no - 76.13.12

Remove

  1. Remove rear quarter companion box. See this section.
  2. Remove rear quarter wooden finisher. See this section.

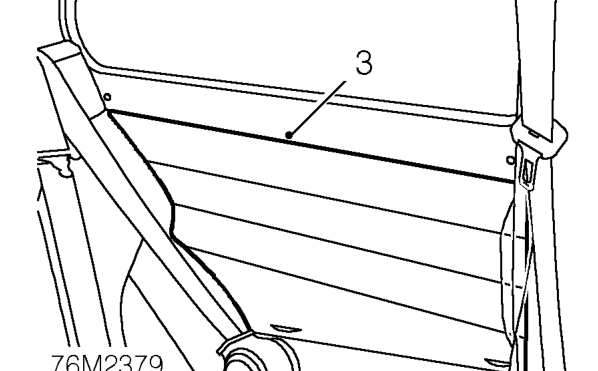

Rear quarter trim pad – Remove rear quarter wooden finisher. See this section.
  1. Release rear quarter trim pad from body.
  2. Remove rear quarter trim pad.

Refit

  1. Fit rear quarter trim pad.
  2. Fit rear quarter wooden finisher. See this section.
  3. Fit rear quarter companion box. See this section.
