BodyRear quarter companion box

REAR QUARTER COMPANION BOX

Service repair no - 76.13.51

Remove

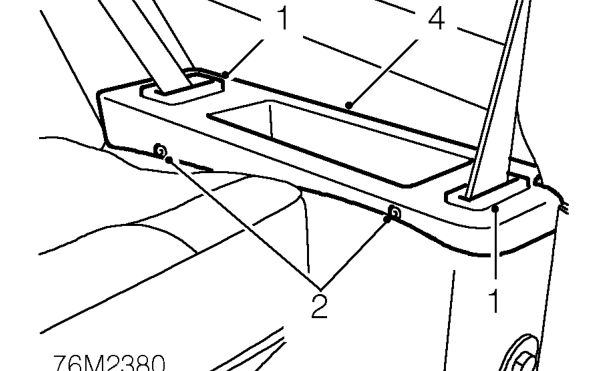

Rear quarter companion box – Service repair no - 76.13.51
  1. Release 2 seat belt guides from companion box.
  2. Remove 2 rivets securing companion box to body.
  3. Raise companion box and release seat belts through slots.
  4. Remove companion box.

Refit

  1. Position rear quarter companion box and locate seat belts.
  2. Position companion box and secure with rivets.
  3. Secure seat belt guides to companion box.

DOOR WOODEN FINISHER

Service repair no - 76.34.15

Remove

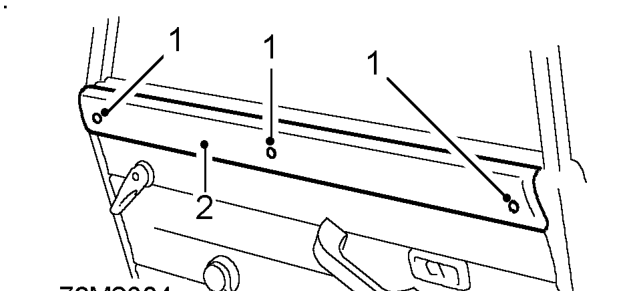

Door wooden finisher – Service repair no - 76.34.15
  1. Remove 3 screws securing wooden finisher to front door.
  2. Remove door finisher.

Refit

  1. Position finisher to front door and secure with screws.
