FASCIA PANEL

Service repair no - 76.46.23.99

Remove

  1. Disconnect battery earth lead.
  2. Remove radio. See ELECTRICAL, Repairs.
Fascia panel – Remove radio. See ELECTRICAL, Repairs.

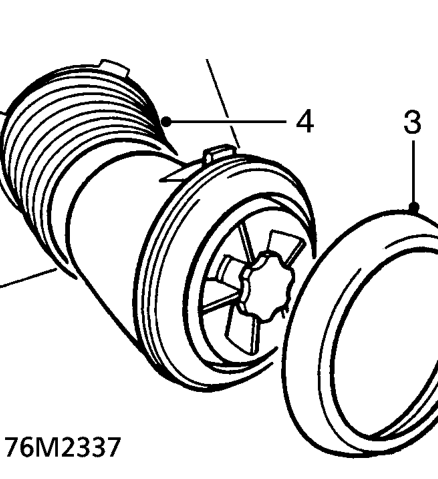

  1. Remove locking rings from fascia air vents. Release and remove air vents.
  2. Remove air vent tubes.
Fascia panel – Remove air vent tubes.

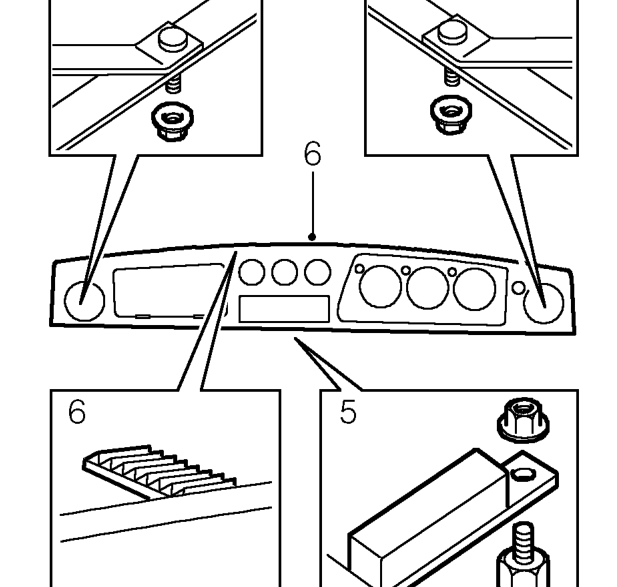

  1. Remove 3 nuts securing fascia panel retaining brackets to body.
  2. Release retaining brackets and carefully pull fascia forward for access.
Fascia panel – Release retaining brackets and carefully pull fascia forward for access.

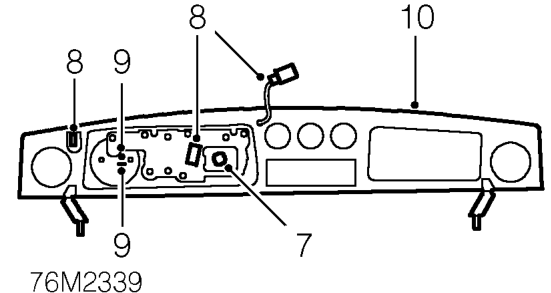

  1. Disconnect speedometer cable.
  2. Disconnect multiplugs from headlamp levelling switch, alarm warning light, main harness and instrument pack.
  3. Disconnect leads from tachometer.
  4. Release and remove fascia panel.

Refit

  1. Position fascia panel.
  2. Connect leads to tachometer.
  3. Connect multiplugs to headlamp levelling switch, alarm warning light, main harness and instrument pack.
  4. Connect speedometer cable.
  5. Position fascia panel and tighten bracket nuts.
  6. Fit air vent tubes.
  7. Fit air vents and secure with locking rings.
  8. Fit radio. See ELECTRICAL, Repairs.
  9. Connect battery earth lead.
