ElectricalAlternator

ALTERNATOR

Service repair no - 86.10.02

Remove

  1. Remove auxiliary drive belt. See this section.
Alternator – Remove auxiliary drive belt. See this section.

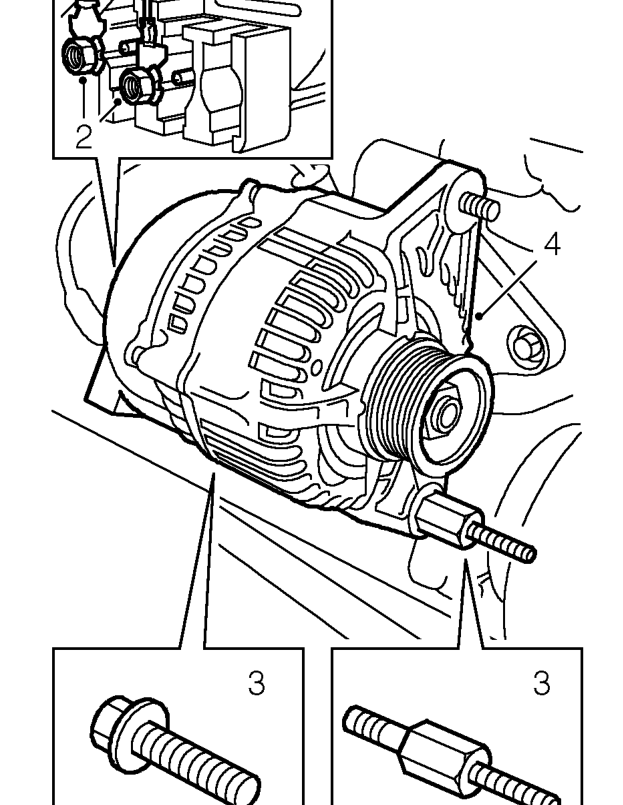

  1. Remove 2 nuts and disconnect leads from alternator.
  2. Remove 2 bolts and nut and bolt securing alternator.
  3. Remove alternator.
Alternator – Remove alternator.

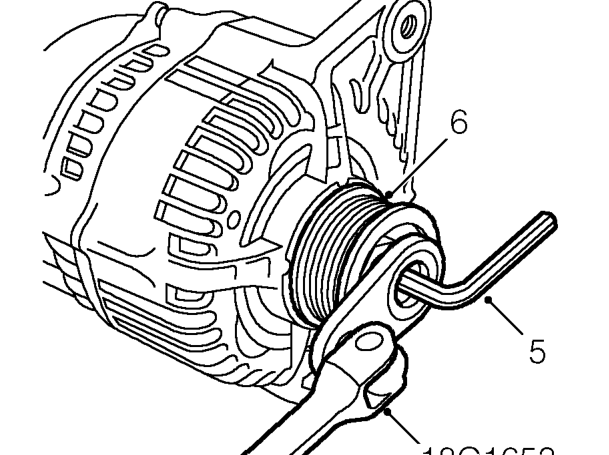

  1. Hold alternator shaft with an 8 mm Allen key and remove pulley retaining nut with 18G 1653.
  2. Remove alternator pulley.

Refit

  1. Clean mating face of alternator pulley and shaft.
  2. Fit pulley to alternator and tighten nut to 25 Nm.
  3. Fit alternator.
  4. Fit and tighten bolts and nut and bolt securing alternator.
  5. Connect leads to alternator and tighten nuts.
  6. Fit auxiliary drive belt. See this section.
