PASSENGER COMPARTMENT FUSE BOX

Service repair no - 86.70.04

Remove

  1. Disconnect battery earth lead.

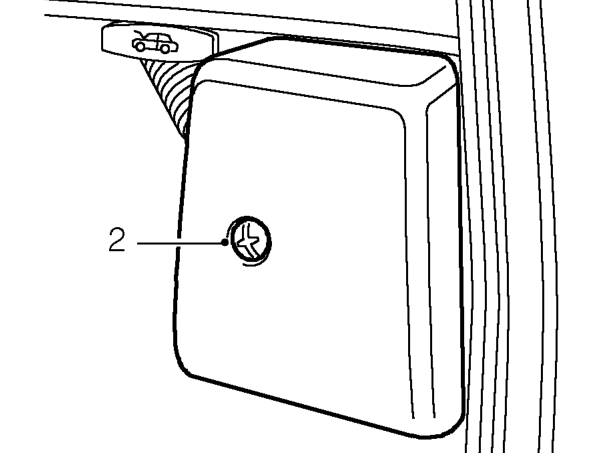

Passenger compartment fuse box – Disconnect battery earth lead.
  1. Release turnbuckle and remove fuse box cover.

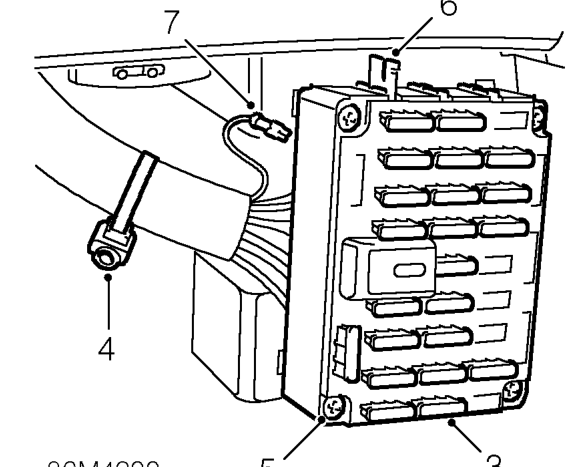

Passenger compartment fuse box – Release turnbuckle and remove fuse box cover.
  1. Note position and remove all fuses.
  2. Release fuse box harness clip from stud on wheel arch.
  3. Remove 4 screws and lower fuse box.
  4. Release and remove 6 terminal retaining plates.
  5. Note position and disconnect wires from rear of fuse box.

Refit

  1. Remove terminal retaining plates from new fuse box.
  2. Fit wires to fuse box.
  3. Fit terminal retaining plates.
  4. Fit fuse box and secure with 4 screws.
  5. Secure harness to stud on wheel arch.
  6. Fit and secure cover to fuse box.
  7. Connect battery earth lead.
