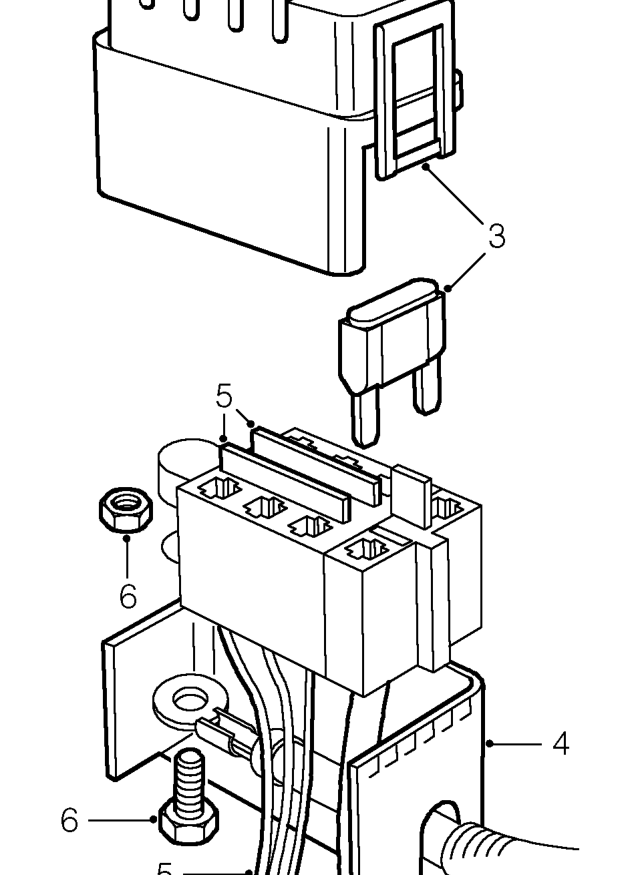

Engine compartment fuse box

ENGINE COMPARTMENT FUSE BOX

Service repair no - 86.70.01

Remove

1. Disconnect battery earth lead.
2. Release fuse box retainers from ECM mounting bracket.

3. Remove fuse box top cover and remove 4 fuses.
4. Release fuse box lower cover.
5. Remove fuse box lead anti-back out plates and release 4 leads from fuse box.
6. Remove nut and bolt and release starter lead from fuse box lower cover.

Refit

1. Remove cover from NEW fuse box.
2. Position starter lead to fuse box and tighten nut and bolt.
3. Remove anti-back out plates and secure leads to fuse box. Fit anti-back out plates to fuse box.
4. Fit fuses and fuse box top cover.
5. Position and secure fuse box to ECM mounting bracket.
6. Connect battery earth lead.
