20 · Electrical

Flasher unit

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs › Flasher unit
ElectricalFlasher unit

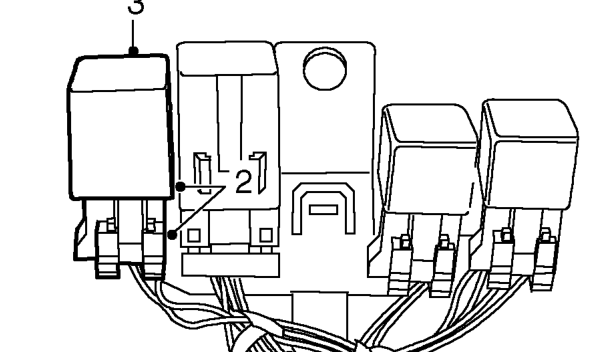

FLASHER UNIT

Service repair no - 86.55.68

Remove

  1. Remove fascia panel. See BODY, Interior trim components.
Flasher unit – Remove fascia panel. See BODY, Interior trim components.
  1. Release flasher unit multiplug from mounting bracket.
  2. Remove flasher unit from multiplug.

Refit

  1. Fit flasher unit to multiplug and secure multiplug to mounting bracket.
  2. Fit fascia panel. See BODY, Interior trim components.

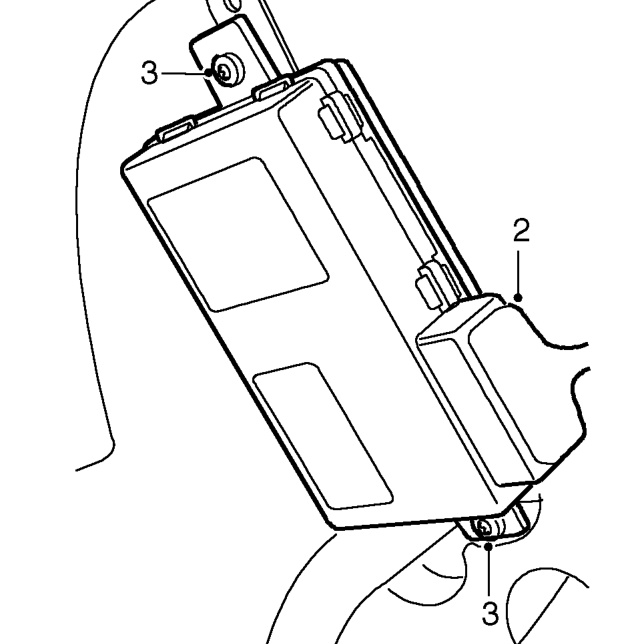

ANTI THEFT ALARM - ECU

Service repair no - 86.55.85

Remove

  1. Remove fascia panel. See BODY, Interior trim components.
Anti theft alarm - ecu – Remove fascia panel. See BODY, Interior trim components.
  1. Disconnect multiplug from anti theft alarm ECU.
  2. Remove 2 screws securing ECU to mounting bracket.
  3. Remove ECU.

Refit

  1. Fit ECU to mounting bracket.
  2. Fit and tighten screws.
  3. Connect multiplug.
  4. Fit fascia panel. See BODY, Interior trim components.
