HORN

Service repair no - 86.30.10

Remove

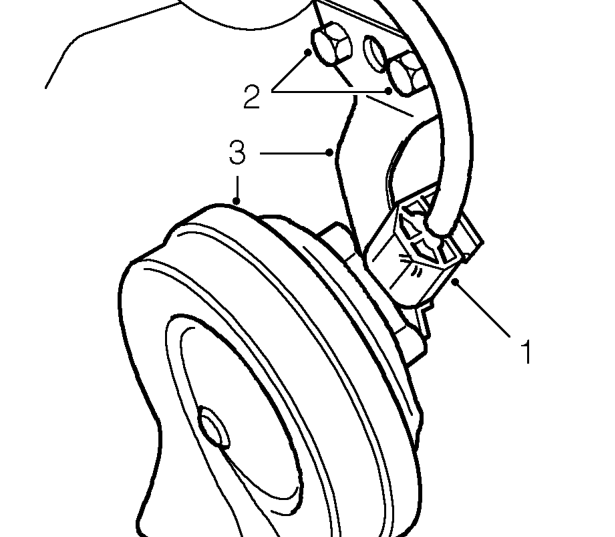

Horn – Service repair no - 86.30.10
  1. Disconnect multiplug from horn.
  2. Remove 2 bolts securing horn mounting bracket to body.
  3. Remove horn and mounting bracket.

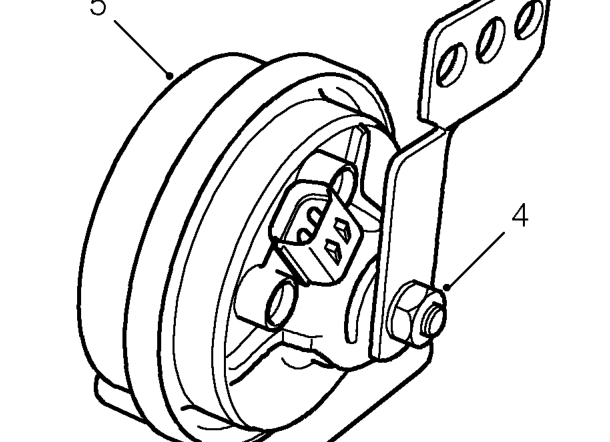

Horn – Remove horn and mounting bracket.
  1. Remove nut and washer securing horn to mounting bracket.
  2. Remove horn.

Refit

  1. Fit horn to mounting bracket.
  2. Fit nut and washer securing horn to mounting bracket and tighten to 10 Nm.
  3. Align horn mounting bracket to body, fit bolts and tighten to 9 Nm.
  4. Connect multiplug to horn.
