Workshop Manuals Factory service & repair Mini
Mini Mini Workshop Manual (1996-2000)20 · Electrical
20 · Electrical

Rear speaker

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs › Rear speaker
ElectricalRear speaker

REAR SPEAKER

Service repair no - 86.50.12

Remove

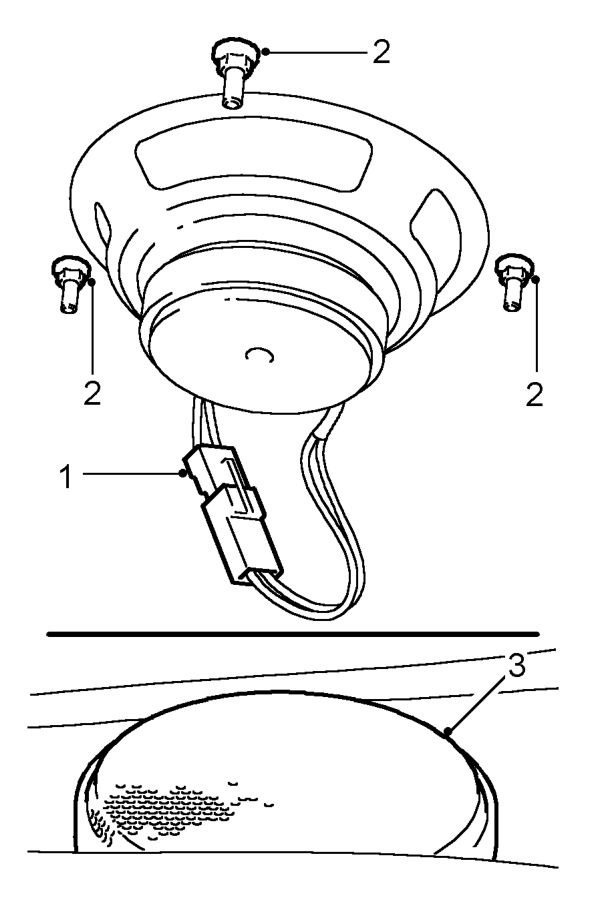

Rear speaker – Service repair no - 86.50.12
  1. Disconnect speaker multiplug from harness.
  2. From within boot area, remove 3 nuts securing speaker to body.
  3. Remove speaker from rear parcel shelf.

Refit

  1. Fit speaker to parcel shelf.
  2. Fit nuts securing speaker to body and tighten to 9 Nm.
  3. Connect speaker multiplug to harness.

AERIAL

Service repair no - 86.50.18

Remove

  1. Remove windscreen. See BODY, Screens.
Aerial – Remove windscreen. See BODY, Screens.

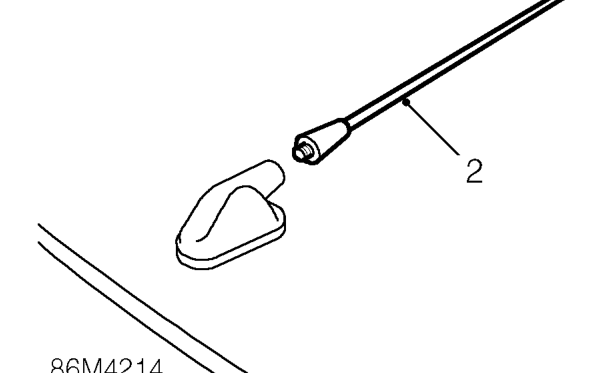

  1. Unscrew and remove aerial from aerial base.
Aerial – Unscrew and remove aerial from aerial base.

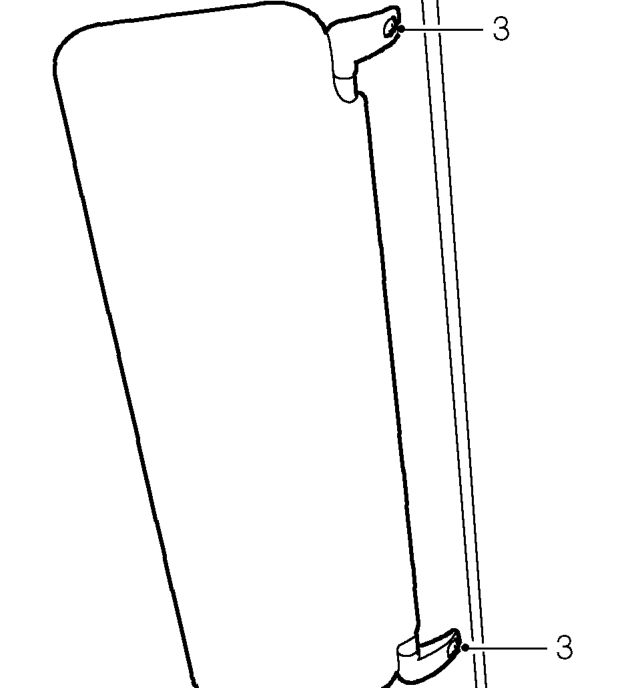

  1. Remove 2 screws securing LH sun visor to roof and remove.
