ElectricalStarter motor

STARTER MOTOR

Service repair no - 86.60.01

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove front grille. See BODY, Exterior fittings.
Starter motor – Remove front grille. See BODY, Exterior fittings.

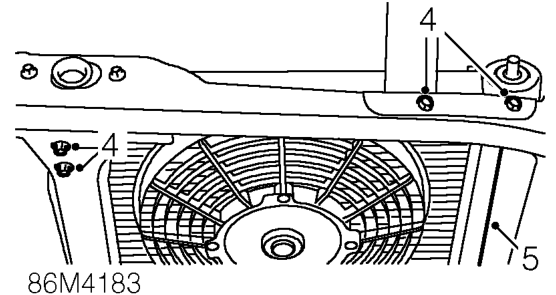

  1. Remove 4 bolts securing radiator upper mountings to bonnet platform.
  2. Remove radiator from its lower mountings and move it to LH side for access to starter motor.
Starter motor – Remove radiator from its lower mountings and move it to LH side for access to starter moto

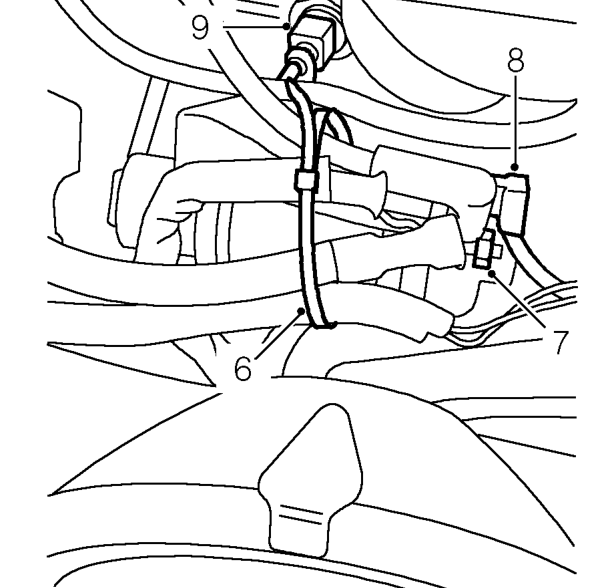

  1. Remove cable tie securing harness to starter motor solenoid.
  2. Remove nut securing leads to starter solenoid.
  3. Release Lucar connection from solenoid.
  4. Disconnect multiplug from oil temperature transmitter
Starter motor – Disconnect multiplug from oil temperature transmitter

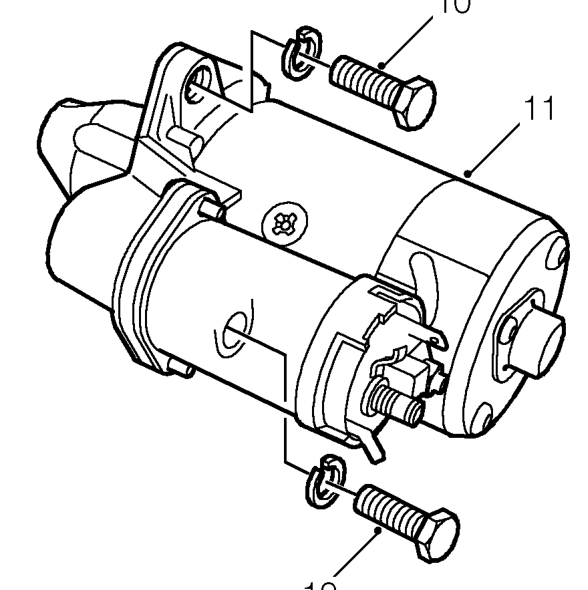

  1. Remove 2 bolts securing starter motor.
  2. Remove starter motor.
