Mini Mini Workshop Manual (1996-2000)17 · Body
17 · Body & interior

Bonnet

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Exterior fittings › Bonnet
BodyBonnet

BONNET

Service repair no - 76.16.01.99

Remove

  1. Support the bonnet in the fully open position.
  2. Fit protective covers to wings.

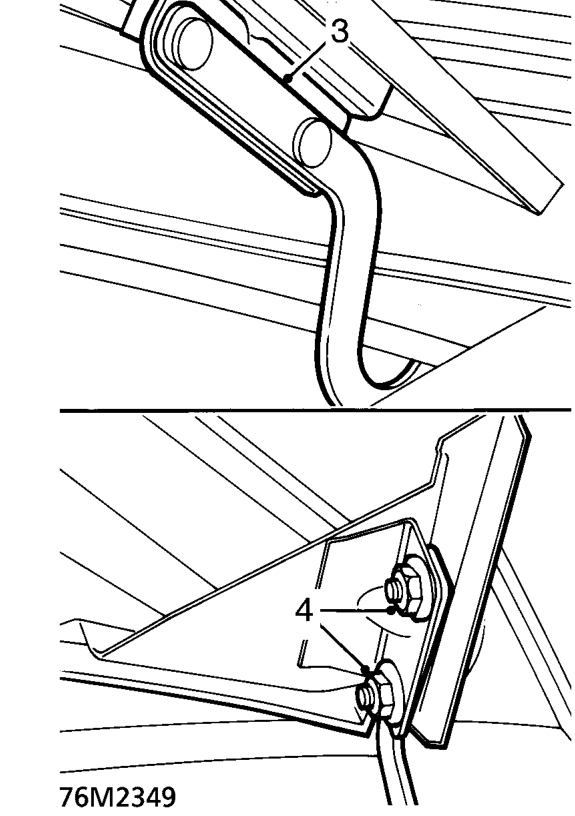

Bonnet – Fit protective covers to wings.
  1. Mark outlines of hinges on bonnet.
  2. Remove nuts and washers securing hinges to bonnet.
  3. Release bonnet stay from body and secure to bonnet.
  4. Remove bonnet.

Refit

  1. Using assistance, position bonnet on hinges.
  2. Fit nuts and washers securing bonnet to hinges.
  3. Align bonnet to hinge outlines.
  4. Tighten nuts securing hinges to body to 10 Nm.
  5. Remove protective covers.
  6. Lower and close bonnet.
  7. Adjust bonnet alignment. See this section.
