Door striker - adjust

Refit

1. Feed bonnet release cable through grommet in bulkhead into engine compartment.
2. Secure cable to clip on body.
3. Connect cable to bonnet release catch.
4. Position bonnet release catch to bonnet locking platform, fit bolts but do not tighten.
5. Connect bonnet lock return spring to body.
6. Locate bonnet release handle on mounting bracket and tighten nut.
7. Lower bonnet and adjust position of bonnet catch to meet the bonnet lock pin.
8. Open bonnet and tighten bolts securing bonnet catch to bonnet locking platform to 9 Nm.

DOOR STRIKER - ADJUST

Service repair no - 76.28.05

Adjust

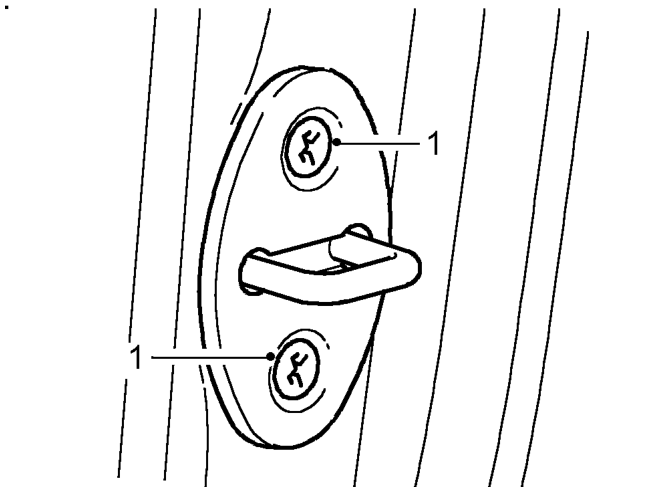

1. Loosen 2 screws securing striker to body and close door.
2. Check door for flush fit to adjacent panels and edges for equal gap.
3. Open door and tighten striker screws to 18 Nm.
