Mini Mini Workshop Manual (1996-2000)17 · Body
17 · Body & interior

Front grille

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Exterior fittings › Front grille
BodyFront grille

FRONT GRILLE

Service repair no - 76.55.03

Remove

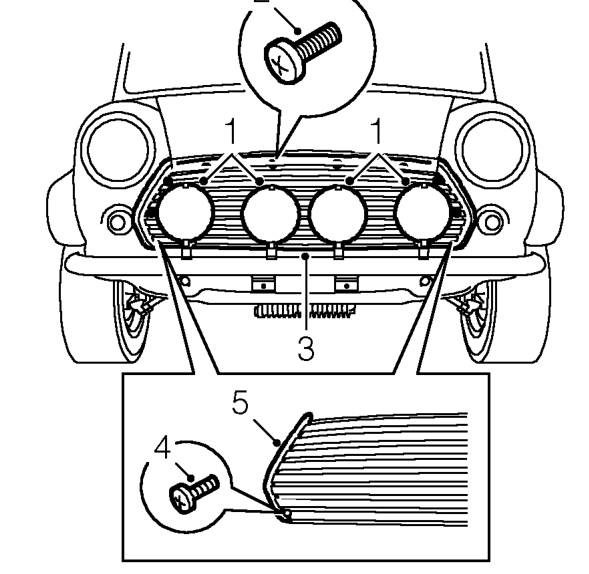

Front grille – Service repair no - 76.55.03
  1. If fitted, lower the driving lamps for access to grille.
  2. Remove 8 screws securing front grille assembly to body.
  3. Remove grille.

Do not carry out further dismantling if component is removed for access only.

  1. Remove 2 screws securing side finishers to grille.
  2. Remove side finishers.

Refit

  1. Fit side finishers to grille and secure with screws.
  2. Fit grille and secure with screws.
  3. Reposition driving lamps if fitted.

FRONT BUMPER

Service repair no - 76.22.08

Remove

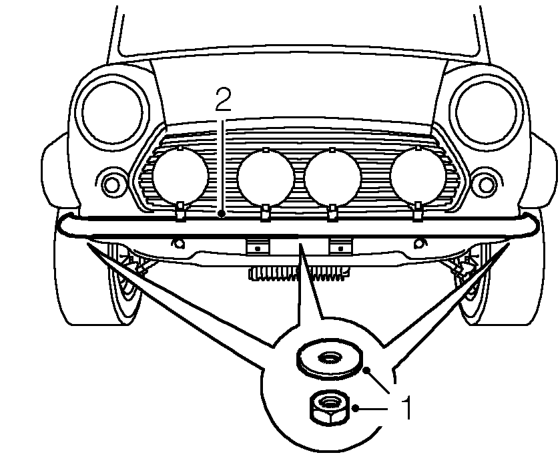

Front bumper – Service repair no - 76.22.08
  1. Remove 3 nuts securing front bumper to body and collect washers.
  2. Remove front bumper.

Refit

  1. Fit front bumper to body.
  2. Fit nuts and washers securing bumper to body and tighten nuts.
