BodyBonnet release cable

BONNET RELEASE CABLE

Service repair no - 76.16.29

Remove

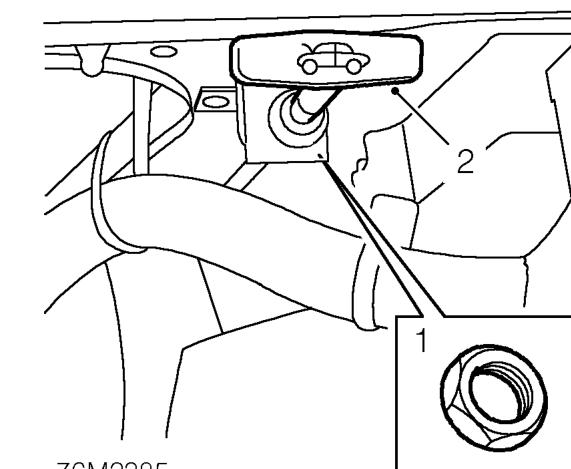

Bonnet release cable – Service repair no - 76.16.29
  1. Loosen lock nut securing bonnet release handle to mounting bracket.
  2. Release handle from mounting bracket.

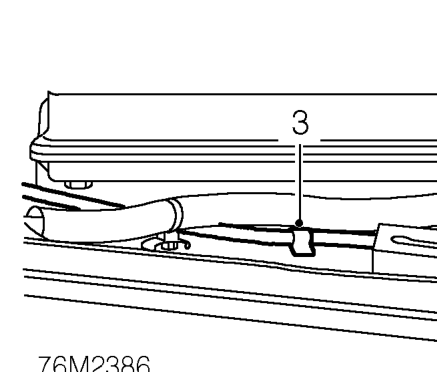

Bonnet release cable – Release handle from mounting bracket.
  1. Release clip securing cable to body.

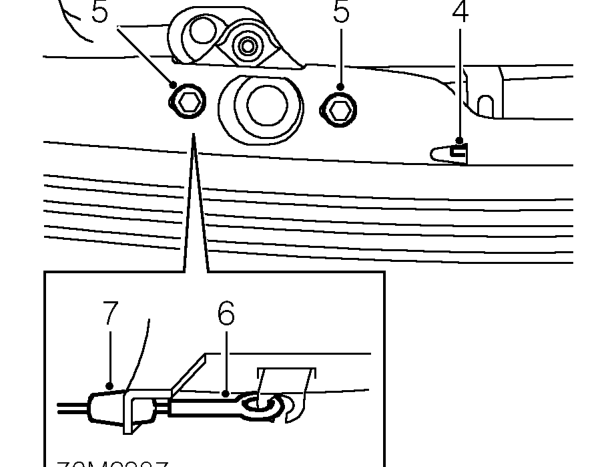

Bonnet release cable – Release clip securing cable to body.
  1. Disconnect bonnet lock return spring from body.
  2. Remove 2 bolts securing bonnet catch to bonnet locking platform.
  3. Release bonnet catch to gain access to bonnet release cable.
  4. Disconnect cable from bonnet catch.

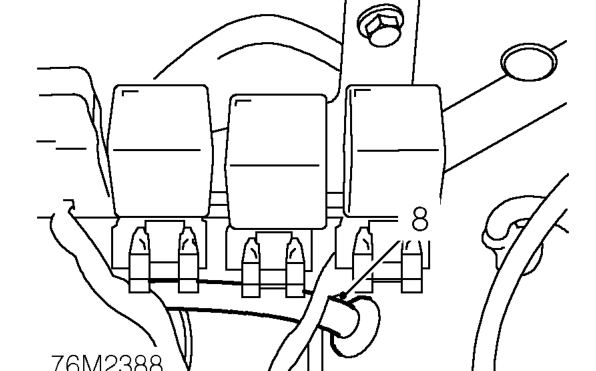

Bonnet release cable – Disconnect cable from bonnet catch.
  1. Withdraw bonnet release cable through bulkhead into passenger compartment.
  2. Remove bonnet release cable
