Rear bumper

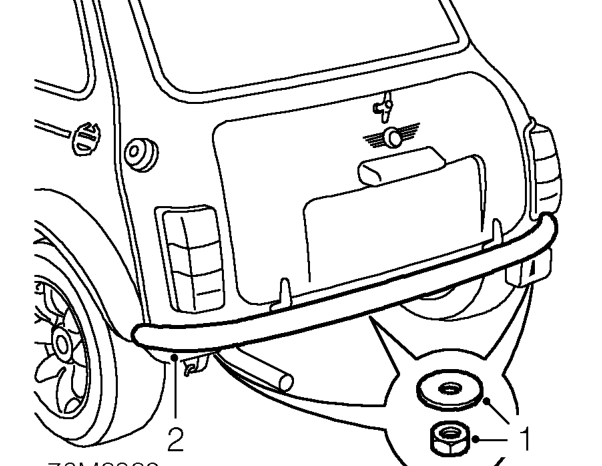

REAR BUMPER

Service repair no - 76.22.15

Remove

1. Remove 3 nuts securing rear bumper to body and collect washers.
2. Remove rear bumper.

Refit

1. Fit rear bumper to body.
2. Fit nuts and washers securing bumper to body and tighten nuts.

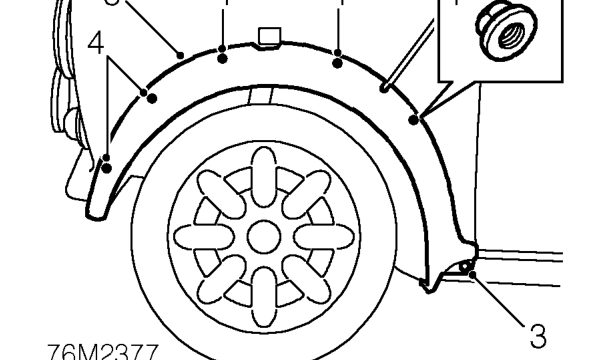

FRONT WHEEL ARCH EXTENSION

Service repair no - 76.43.54

Remove

1. Remove front bumper. See this section.
2. Raise front of vehicle, one side.

WARNING: Support on safety stands.

3. Using a 5mm drill, drill out rivet securing wheel arch extension to sill panel.
4. Remove 5 nuts securing wheel arch extension to wing.
5. Remove wheel arch extension.

Refit

1. Clean mating faces of wheel arch extension and wing.
2. Fit wheel arch extension to wing ensuring sealing rubber is correctly seated.
3. Fit nuts securing wheel arch extension to body and tighten to 9 Nm.
4. Rivet wheel arch extension to sill panel.
5. Fit front bumper. See this section.
6. Remove stand(s) and lower vehicle.
