Mini Mini Workshop Manual (1996-2000)20 · Electrical
20 · Electrical

Horn relay

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs › Horn relay
ElectricalHorn relay

HORN RELAY

Service repair no - 86.55.09

Remove

  1. Remove fascia panel. See BODY, Interior trim components.

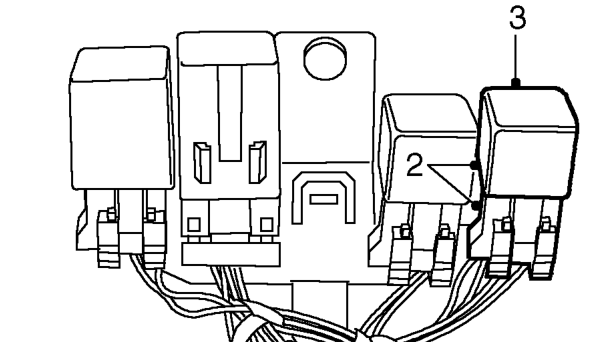

Horn relay – Remove fascia panel. See BODY, Interior trim components.
  1. Release relay multiplug from mounting bracket.
  2. Remove relay from multiplug.

Refit

  1. Fit relay to multiplug and secure multiplug to mounting bracket.
  2. Fit fascia panel. See BODY, Interior trim components.

DIRECTION INDICATOR RELAY

Service repair no - 86.55.26

Remove

  1. Open bonnet.

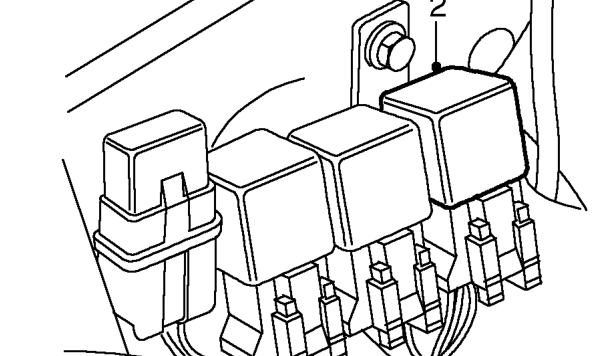

Direction indicator relay – Open bonnet.
  1. Remove relay from mounting bracket on RH wing valance.

Refit

  1. Fit relay to mounting bracket.
  2. Close bonnet.
