Mini Mini Workshop Manual (1996-2000)20 · Electrical
20 · Electrical

Front indicator lamp

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs › Front indicator lamp
ElectricalFront indicator lamp

FRONT INDICATOR LAMP

Service repair no - 86.40.42

Remove

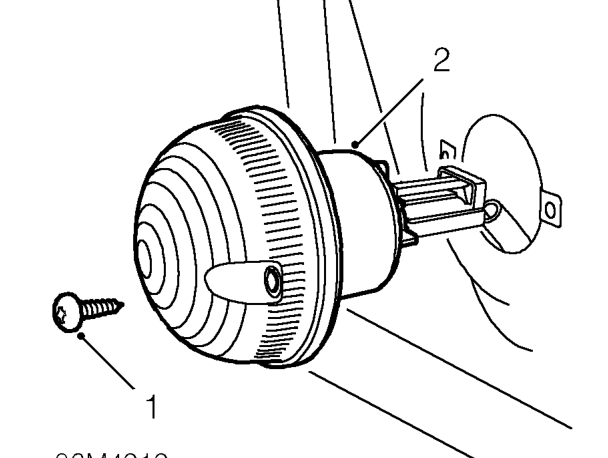

Front indicator lamp – Service repair no - 86.40.42
  1. Remove 2 screws securing lamp to body.
  2. Release lamp and disconnect bulb holder.

Refit

  1. Connect bulb holder to lamp.
  2. Position lamp to body and secure with screws.

SIDE REPEATER LAMP

Service repair no - 86.40.51

Remove

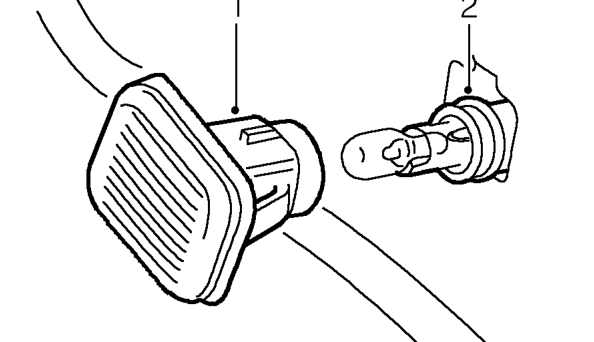

Side repeater lamp – Service repair no - 86.40.51
  1. Squeeze lugs on repeater lamp to release from wing.
  2. Release bulb holder from repeater lamp.

Refit

  1. Connect bulb holder to repeater lamp.
  2. Fit repeater lamp to wing.
