FOG OR DRIVING LAMP

Service repair no - 86.40.96

Remove

  1. Remove front grille. See BODY, Exterior fittings.

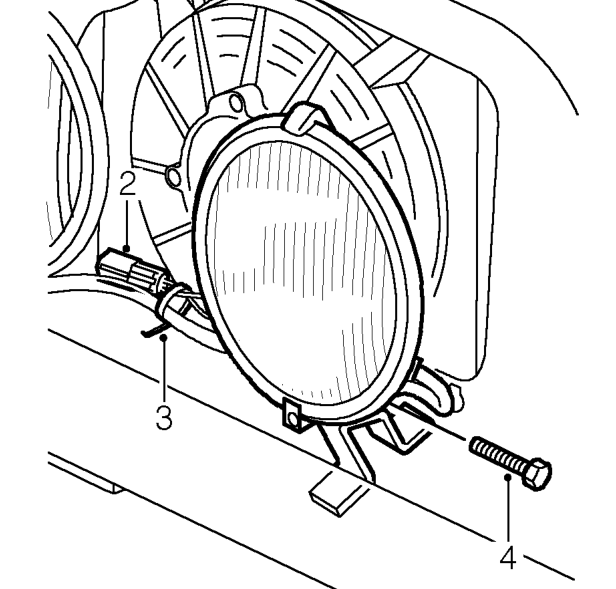

Fog or driving lamp – Remove front grille. See BODY, Exterior fittings.
  1. Disconnect multiplug from lamp.
  2. Release cable tie securing harness to body.
  3. Remove bolt securing lamp to mounting bracket and remove lamp.

Refit

  1. Position lamp to mounting bracket, fit and tighten bolt.
  2. Connect multiplug to lamp and secure harness to body with cable tie.
  3. Fit front grille. See BODY, Exterior fittings.

HEADLAMP ADJUSTER UNIT

Service repair no - 86.41.16

Remove

  1. Remove headlamp light unit. See this section.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

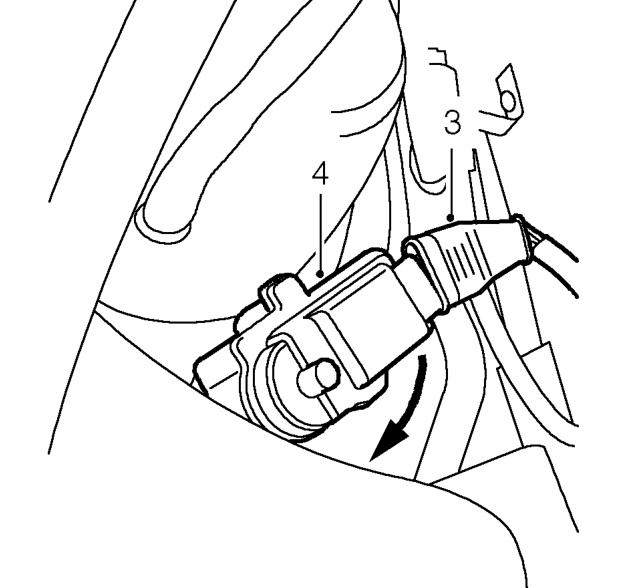

Headlamp adjuster unit – Raise front of vehicle.
  1. Locate headlamp adjuster under wing and pull back multiplug cover. Disconnect multiplug.
  2. Rotate adjuster clockwise and release from headlamp.

Refit

  1. Position adjuster to headlamp and rotate to position.
  2. Connect multiplug to adjuster and secure cover.
  3. Fit headlamp light unit. See this section.
  4. Remove stand(s) and lower vehicle.
