HAZARD WARNING LIGHT SWITCH

Service repair no - 86.65.50

Remove

Hazard warning light switch – Service repair no - 86.65.50

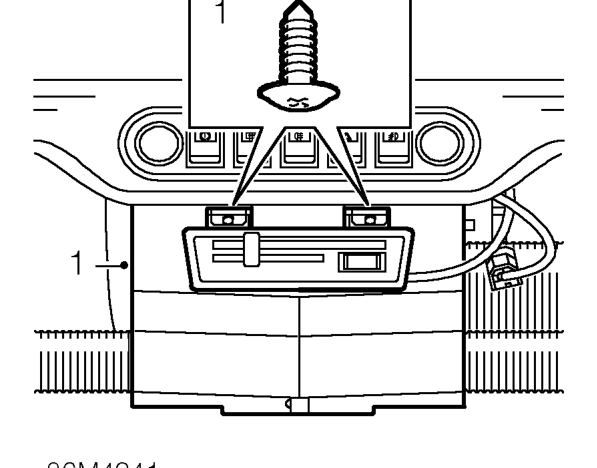

  1. Remove 2 screws securing heater to fascia lower rail and lower heater.
Hazard warning light switch – Remove 2 screws securing heater to fascia lower rail and lower heater.

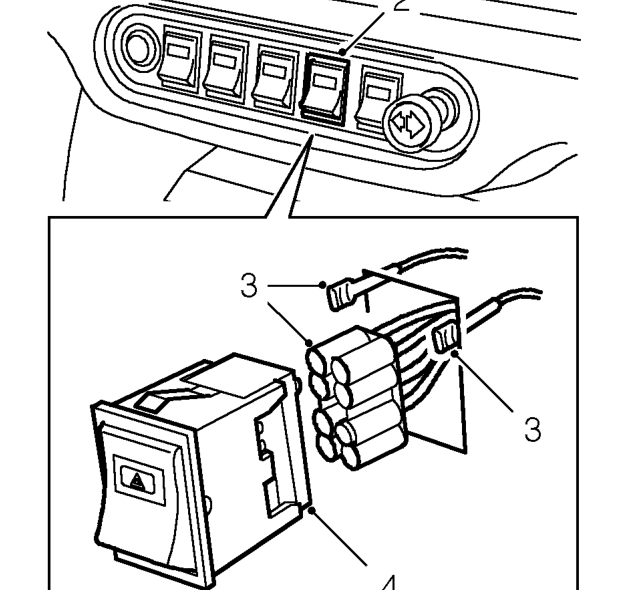

  1. Release switch from switch panel.
  2. Disconnect multiplug and 2 Lucars from switch.
  3. Remove switch.

Refit

  1. Position switch to panel.
  2. Connect multiplug and Lucars to switch.
  3. Fit switch to panel.
  4. Position heater to fascia rail and secure with screws.
