Coaxial cable

4. Release roof lining from front upper flange of windscreen aperture.
5. Carefully lower front edge of roof lining to gain access to aerial.

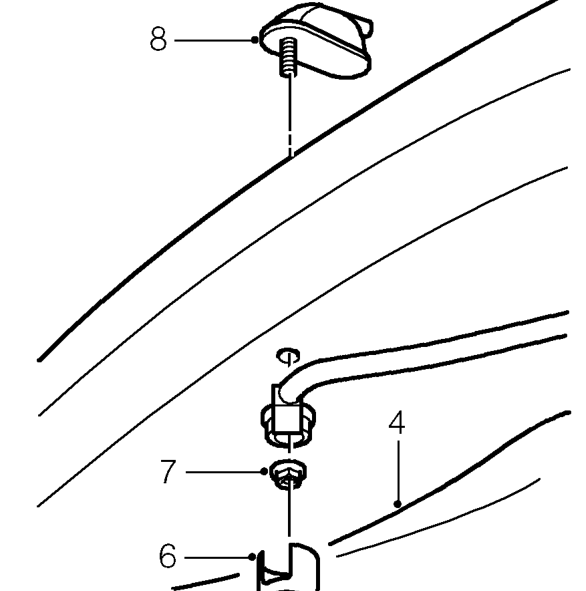

6. Remove cover from coaxial cable.
7. Remove nut securing coaxial cable to aerial base.
8. Remove aerial base from roof.

Refit

1. Clean mating face of aerial base and vehicle roof.
2. Fit aerial base to roof.
3. Connect coaxial cable to aerial base.
4. Fit nut securing coaxial cable to aerial base and tighten to 9 Nm.
5. Fit cover to coaxial cable.
6. Apply adhesive to edge of roof lining and carefully secure to windscreen aperture.
7. Position LH sun visor and secure with screws.
8. Fit windscreen. See BODY, Screens.

COAXIAL CABLE

Service repair no - 86.50.24

Remove

1. Remove fascia. See BODY, Interior trim components.
2. Remove windscreen. See BODY, Screens.

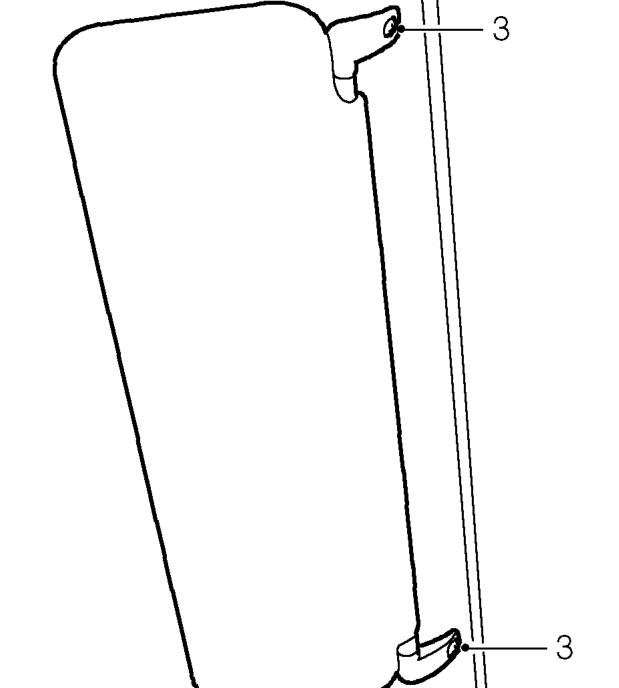

3. Remove 2 screws securing LH sun visor to roof.
