Coaxial cable (page 2 of 2)

4. Release roof lining from front upper flange of windscreen aperture.
5. Carefully lower front edge of roof lining to gain access to aerial.

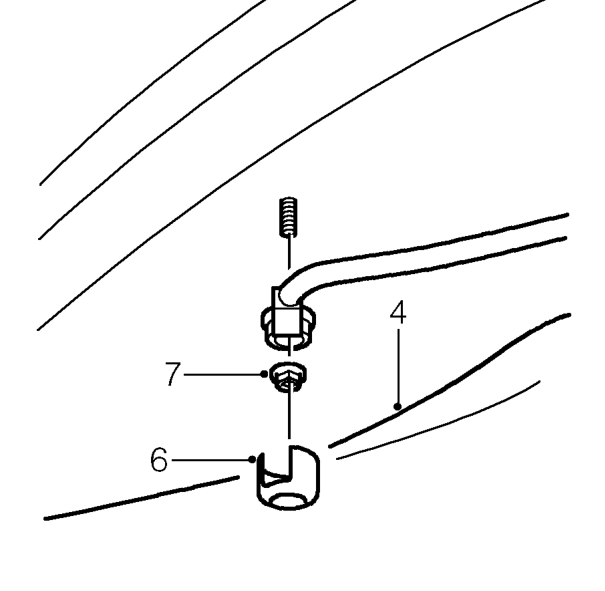

6. Remove cover from coaxial cable.
7. Remove nut securing coaxial cable to aerial base.

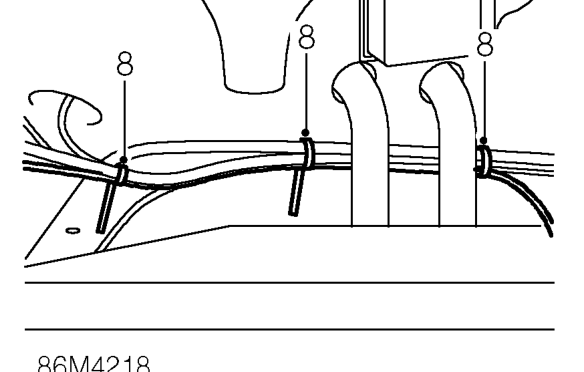

8. Remove 3 cable ties securing coaxial cable to body harness.
9. Tie a draw string to the radio end of the coaxial cable and withdraw cable into roof area.
10. Untie draw string and remove coaxial cable.

Refit

1. Attach draw string to the radio end of the new coaxial cable and pull cable into position.
2. Remove draw string.
3. Secure coaxial cable to main harness with cable ties.
4. Connect coaxial cable to aerial base.
5. Fit nut securing coaxial cable to aerial base and tighten to 9 Nm.
6. Fit cover to coaxial cable.
7. Apply adhesive to edge of roof lining and carefully secure to windscreen aperture.
8. Position LH sun visor and secure with screws.
9. Fit windscreen. See BODY, Screens.
10. Fit fascia. See BODY, Interior trim components.
