Workshop Manuals Factory service & repair Mini
Mini Mini Workshop Manual (1996-2000)20 · Electrical
20 · Electrical

Driving/fog lamp switch

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs › Driving/fog lamp switch
ElectricalDriving/fog lamp switch

Refit

  1. Position switch and tighten nut. Fit switch knob.
  2. Connect multiplug.
  3. Fit air vent hose.
  4. Fit air vent and secure with locking ring.

DRIVING/FOG LAMP SWITCH

Service repair no - 86.65.35

Remove

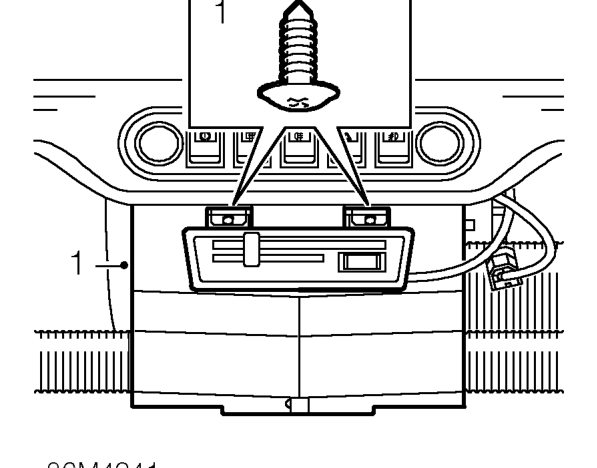

Driving/fog lamp switch – Service repair no - 86.65.35
  1. Remove 2 screws securing heater to fascia lower rail and lower heater.

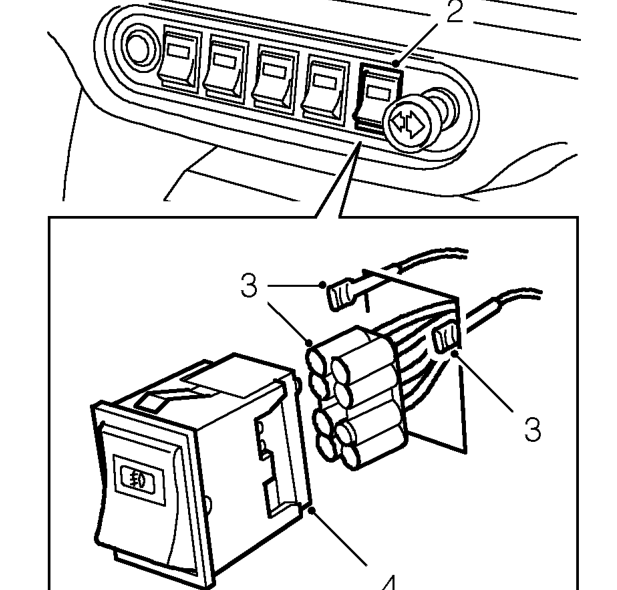

Driving/fog lamp switch – Remove 2 screws securing heater to fascia lower rail and lower heater.
  1. Release switch from switch panel.
  2. Disconnect multiplug and 2 Lucars from switch.
  3. Remove switch.

Refit

  1. Position switch to panel.
  2. Connect multiplug and Lucars to switch.
  3. Fit switch to panel
  4. Position heater to fascia rail and secure with screws.
