Workshop Manuals Factory service & repair Mini
Mini Mini Workshop Manual (1996-2000)20 · Electrical
20 · Electrical

Heated rear screen switch

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs › Heated rear screen switch
ElectricalHeated rear screen switch

HEATED REAR SCREEN SWITCH

Service repair no - 86.65.36

Remove

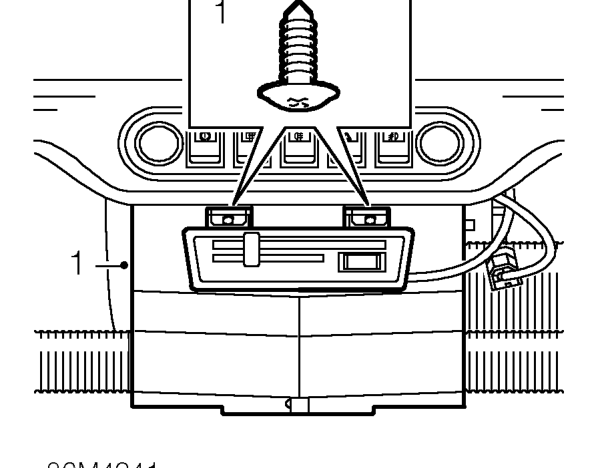

Heated rear screen switch – Service repair no - 86.65.36
  1. Remove 2 screws securing heater to fascia lower rail and lower heater.
Heated rear screen switch – Remove 2 screws securing heater to fascia lower rail and lower heater.

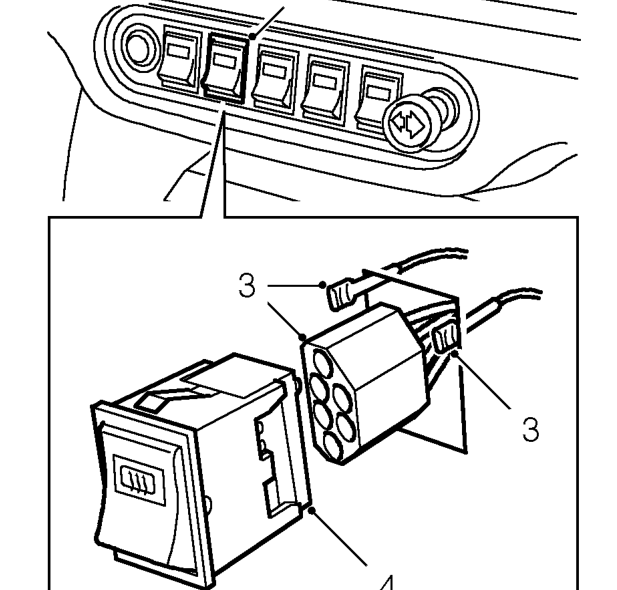

  1. Release switch from switch panel.
  2. Disconnect multiplug and 2 Lucars from switch.
  3. Remove switch.

Refit

  1. Position switch to panel.
  2. Connect multiplug and Lucars to switch.
  3. Fit switch to panel
  4. Position heater to fascia rail and secure with screws.
