Headlamp levelling switch

Refit

1. Ensure starter and mating face on flywheel housing is clean.
2. Fit starter motor and tighten bolts to 37 Nm.
3. Connect leads to solenoid terminal, fit nut and tighten to 4 Nm.
4. Connect Lucar to solenoid.
5. Connect multiplug to oil temperature transmitter.
6. Fit radiator to lower brackets
7. Align radiator upper brackets and secure with bolts.
8. Fit front grille. See BODY, Exterior fittings.
9. Remove stand(s) and lower vehicle.
10. Connect battery earth lead.

HEADLAMP LEVELLING SWITCH

Service repair no - 86.65.16

Remove

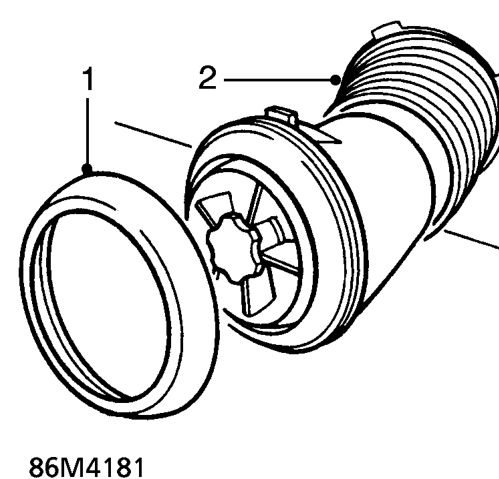

1. Remove fascia RH air vent locking ring. Release and remove air vent.
2. Remove air vent hose.

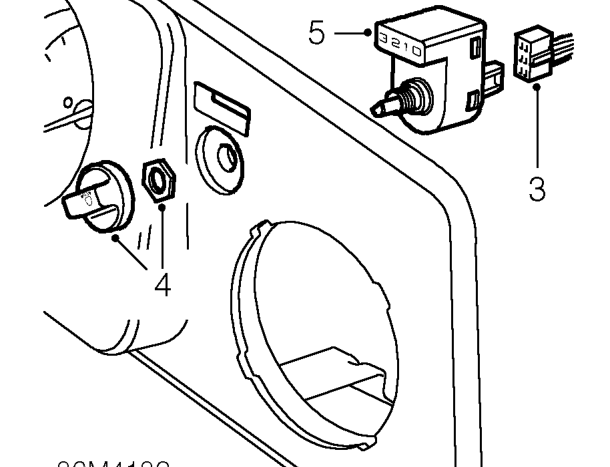

3. Disconnect multiplug from headlamp levelling switch.
4. Remove knob from switch and remove nut securing switch to fascia panel.
5. Remove switch.
