ElectricalTail lamp

TAIL LAMP

Service repair no - LH - 86.40.70 RH - 86.40.71

Remove

  1. Remove boot carpet.

LH side only

  1. Drain fuel tank. See FUEL DELIVERY SYSTEM, Repairs.
  2. Remove spare wheel.
  3. Disconnect battery earth lead.
Lh side only – Disconnect battery earth lead.

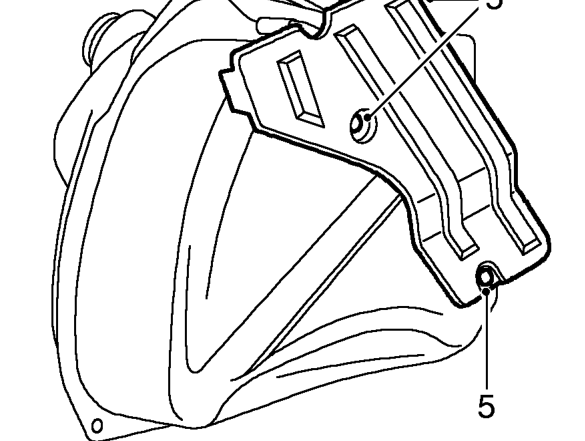

  1. Remove studs securing fuel tank side 12 cover and remove cover.
Lh side only – Remove studs securing fuel tank side 12 cover and remove cover.

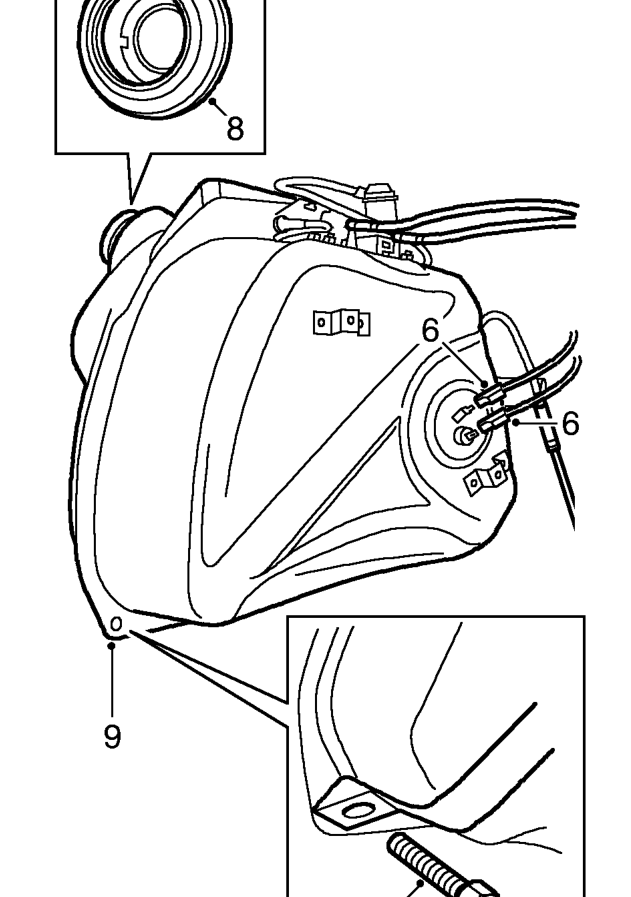

  1. Disconnect 2 Lucars from fuel tank sender unit.
  2. Remove bolt securing fuel tank retaining strap and move strap aside.
  3. Release tank from filler neck grommet.
  4. Manoeuvre fuel tank into boot space.
