INDICATOR/HEADLAMP SWITCH

Service repair no - 86.65.55

Remove

  1. Remove rotary coupler. See this section.
Indicator/headlamp switch – Remove rotary coupler. See this section.

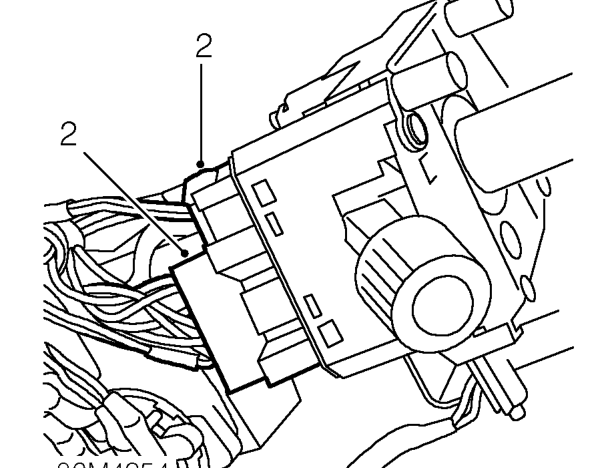

  1. Disconnect 2 multiplugs from switch.
Indicator/headlamp switch – Disconnect 2 multiplugs from switch.

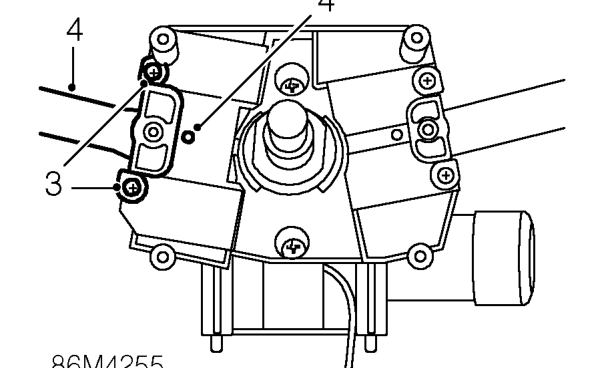

  1. Remove 2 screws securing switch to switch assembly.
  2. Depress retaining tag and remove switch.

Refit

  1. Fit indicator/headlamp switch to switch assembly and secure with screws.
  2. Connect multiplugs to switch assembly.
  3. Fit rotary coupler. See this section.

STEERING COLUMN SWITCH ASSEMBLY

Service repair no - 86.65.64

Remove

  1. Remove rotary coupler. See this section.
Steering column switch assembly – Remove rotary coupler. See this section.

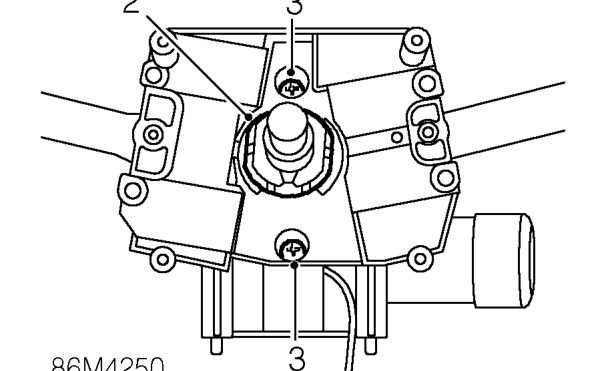

  1. Remove indicator cancelling cam from column.
  2. Remove 2 screws securing switch assembly to steering column.
