Indicator/headlamp switch (page 2 of 2)

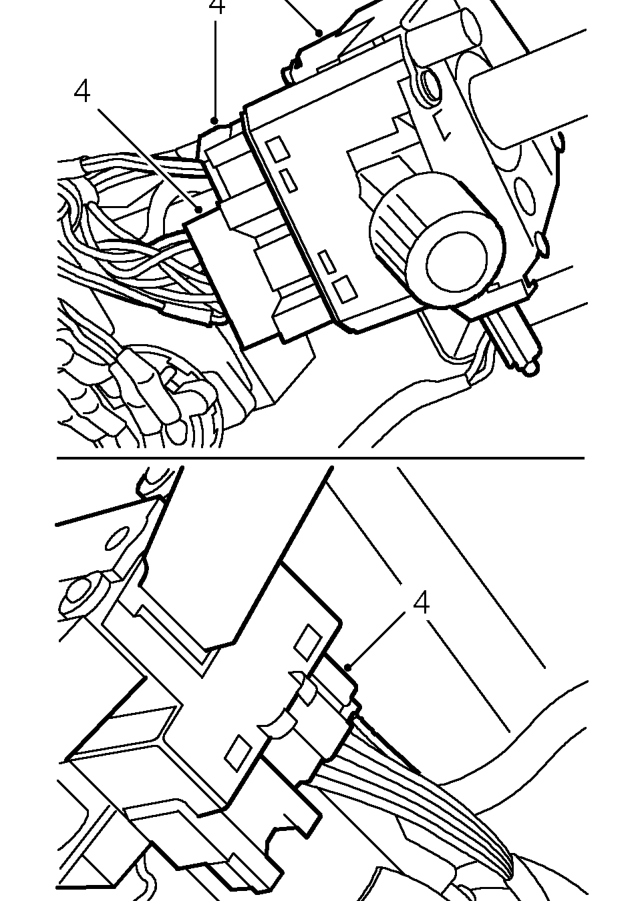

4. Release switch assembly from column and disconnect 3 multiplugs.
5. Remove switch assembly.

Do not carry out further dismantling if component is removed for access only.

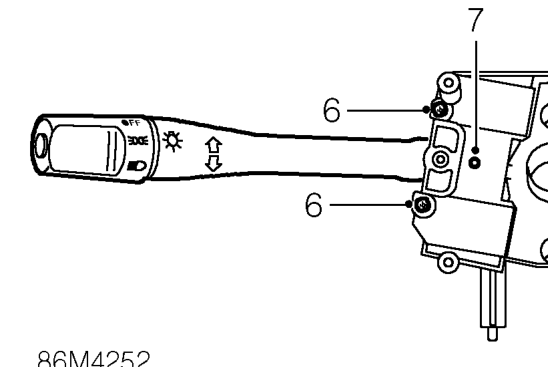

6. Remove 2 screws securing indicator/headlamp switch to switch assembly.
7. Depress retaining tag and remove indicator/headlamp switch.

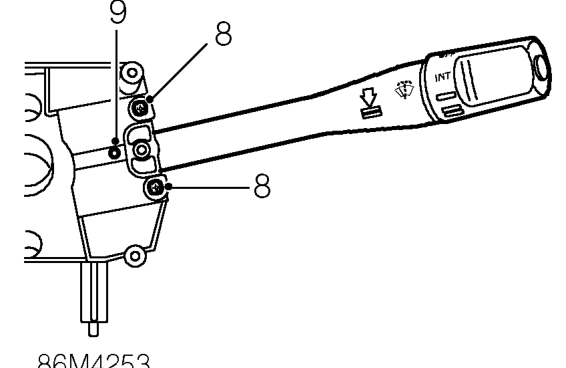

8. Remove 2 screws securing windscreen washer and wiper switch to switch assembly.
9. Depress retaining tag and remove windscreen washer and wiper switch.
10. Fit washer and wiper switch to switch assembly and secure with screws.
11. Fit indicator/headlamp switch to switch assembly and secure with screws.

Refit

1. Position switch assembly to steering column, connect multiplugs and tighten retaining screws.
2. Fit direction indicator cancelling cam to steering column.
3. Fit rotary coupler. See this section.
