Workshop Manuals Factory service & repair Mini
Mini Mini Workshop Manual (1996-2000)20 · Electrical
20 · Electrical

Radio

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs › Radio
ElectricalRadio

RADIO

Service repair no - 86.50.03

Remove

Radio – Service repair no - 86.50.03

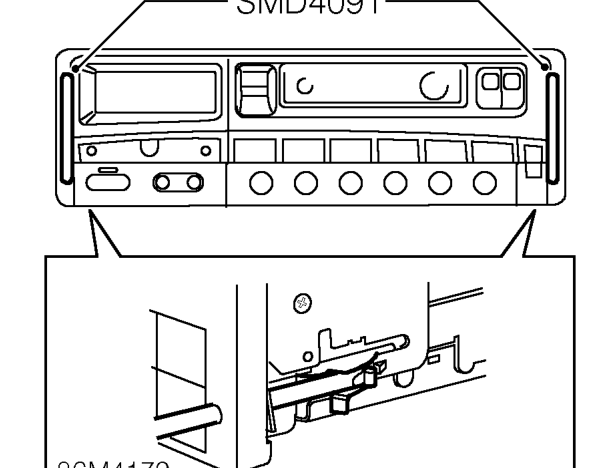

  1. Fit radio removal tools SMD 4091 to release retaining clips. Pull on tools to release radio from fascia.
Radio – Fit radio removal tools SMD 4091 to release retaining clips. Pull on tools to release radi

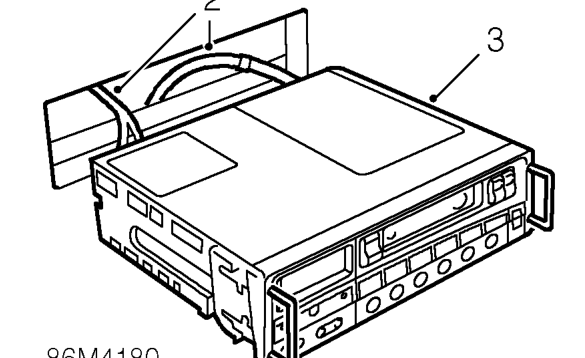

  1. Disconnect 2 multiplugs and aerial lead from radio.
  2. Remove radio and remove tools from radio.

Refit

  1. Position radio to aperture. Connect multiplugs and aerial lead.
  2. Slide radio into fascia until retaining clips engage.
  3. Enter security code and check radio for correct operation.
