FOG/DRIVING LAMP RELAY

Service repair no - 86.55.51

Remove

  1. Open bonnet.

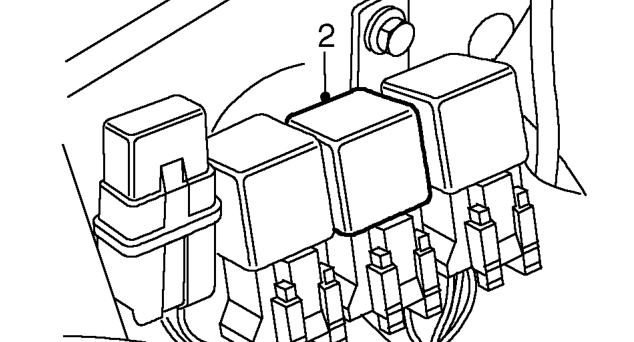

Fog/driving lamp relay – Open bonnet.

Driving lamp relay

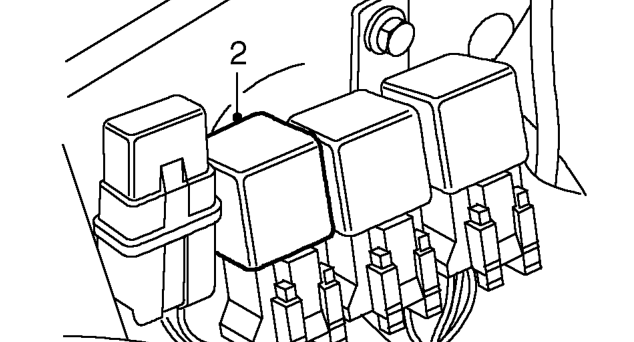

Fog/driving lamp relay – Driving lamp relay

Fog lamp relay

  1. Remove relay from mounting bracket on RH wing valance.

Refit

  1. Fit relay to mounting bracket.
  2. Close bonnet.

AUXILIARY CIRCUITS RELAY

Service repair no - 86.55.52

Remove

  1. Remove fascia panel. See BODY, Interior trim components.

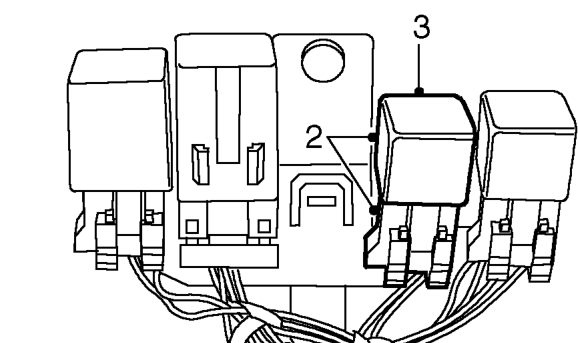

Auxiliary circuits relay – Remove fascia panel. See BODY, Interior trim components.
  1. Release relay multiplug from mounting bracket.
  2. Remove relay from multiplug.

Refit

  1. Fit relay to multiplug and secure multiplug to mounting bracket.
  2. Fit fascia panel. See BODY, Interior trim components.
