HEADLAMP ADJUST

Service repair no - 86.40.17

Inspect

  1. Align suitable beam setting equipment to headlamp.
  2. Ensure headlamp levelling switch is in position ’0’ and switch on headlamps. Headlamp setting = 1.4% below horizontal and parallel.

Adjust

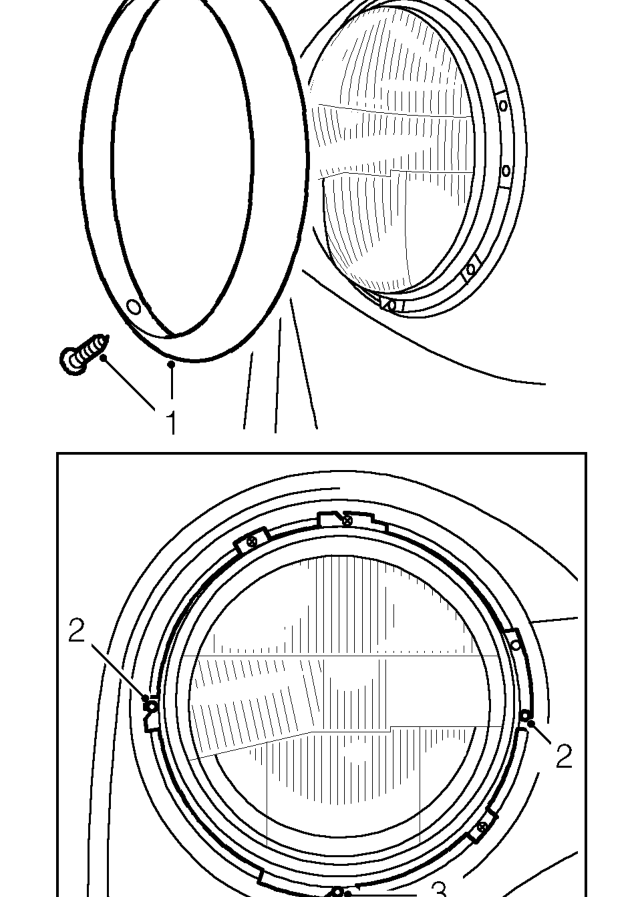

Headlamp adjust – Ensure headlamp levelling switch is in position ’0’ and switch on headlamps. Headlamp sett
  1. Remove screw securing headlamp finisher and remove.
  2. Turn screws for vertical alignment.
  3. Turn screw for horizontal alignment.
  4. Fit headlamp finisher and secure with screw.
  5. Align beam setting equipment to 2nd headlamp.
  6. Adjust 2nd headlamp as detailed in steps 1 to 3 above.
  7. Switch off headlamps.
  8. Remove beam setter.
